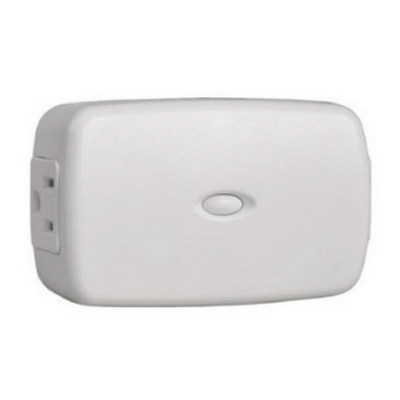

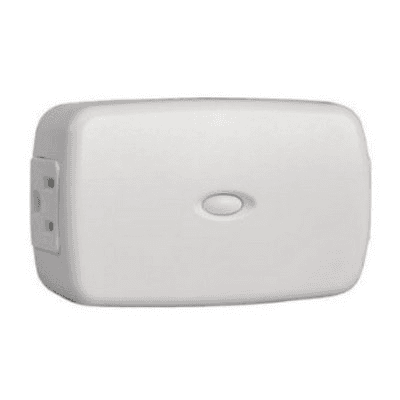

Smart Plug-in Dimmer Module
Add app-controlled dimming to table and floor lamps—no wiring required. Our Z-Wave™ plug-in dimmer modules give you on/off + smooth dimming, scenes, schedules, and automations through your Alarm.com system. Typical models are Z-Wave Plus, support up to 100W dimmable LED/CFL or 300W incandescent, and include one dimmable outlet plus one pass-through (always on).
Why Choose This with Smart Shield Systems
- Fast, tidy setup: Plug it in, pair over Z-Wave, and you’re ready—ideal for lamps where running new wire isn’t practical.
- Alarm.com integration: Control from the app, build scenes/schedules, and tie lights to arming, doors, and sensors.
- Right hardware for your load: We match brands/models (Leviton, Jasco/GE, GoControl) to your bulbs and wattage.
Key Features
- Dimmable lamp control: Works with dimmable LED/CFL (up to 100W) and incandescent/halogen (up to 300W)—great for living rooms, bedrooms, and desks.
- Two outlets: 1 controlled (dimmable) + 1 pass-through (always on) so chargers stay powered while your lamp is automated.
- Z-Wave Plus mesh repeater: Line-powered modules strengthen your Z-Wave network for better range and reliability.
- Compact, no-tools install: Just plug in; many units support network-wide inclusion for easier pairing.
Product Specifications (At-a-Glance)
- Load ratings: 100W max dimmable LED/CFL, 300W max incandescent/halogen (per outlet’s dimmable receptacle).
- Outlets: One Z-Wave dimmable receptacle + one always-on pass-through.
- Radio: Z-Wave / Z-Wave Plus (908.42 MHz); typical range ~100 ft LOS to nearest node.
- Power: 120 VAC, 60 Hz (standard grounded receptacle).
- Examples we deploy: Leviton DZPD3 (Z-Wave Plus dimmer), GE/Jasco 28170 (Enbrighten plug-in dimmer), GoControl/Linear PD300Z-2.
Compatibility Notes
- Alarm.com: Plug-in Z-Wave light modules are supported alongside in-wall switches, outlets, and bulbs.
- Dimmable lamps only: Don’t use with motors, non-dimmable/fluorescent fixtures, or transformer-based loads (per manufacturer safety guidance).
Popular Use Cases
- Living-room lamps that follow sunset/sunrise schedules
- Bedroom reading lights on gentle wake/bedtime scenes
- Holiday/seasonal lamps you can automate without rewiring
Frequently Asked Questions
Yes—Z-Wave plug-in light modules are supported. We pair the dimmer to your panel and manage it from the Alarm.com app.
Typical ratings are up to 100W (dimmable LED/CFL) or 300W (incandescent/halogen) on the controlled outlet. We’ll check your bulb types and wattage.
Most models provide one dimmable outlet and one always-on outlet. If you need both controlled, tell us and we’ll propose alternatives.
Yes—because it’s line-powered, it acts as a mesh repeater/range extender for other Z-Wave devices nearby.
Yes. Do not use with motors, fans, non-dimmable lamps, fluorescent fixtures, or transformer loads; use it only with dimmable lamps.
Additional Resources
Download ManualReady for Plug-and-Play Lighting Control?
Smart Shield Systems will specify the right Smart Plug-in Dimmer Module, pair it with your system, and set up scenes and schedules—so your lamps work exactly how you want, day and night.
