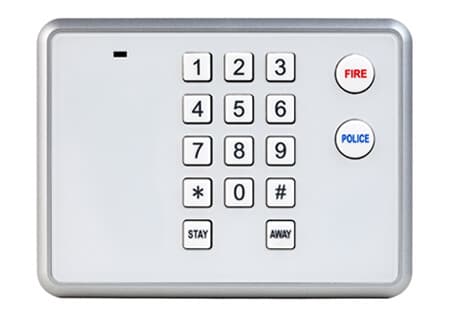

Wireless Keypad
Add a simple, wall-mounted secondary keypad anywhere you need arm/disarm access. The 2GIG-PAD1-345 communicates on 345 MHz to your 2GIG panel, lets you arm Stay/Away, disarm with a code, and trigger Fire or Police panic—perfect for back doors, garages, and bedrooms. Published open-air range is ~350 ft.
Why Choose This with Smart Shield Systems
- Placement that works: we test RF, mount the backplate level, and position the keypad where everyone can reach it without false presses.
- Clean programming: we enroll the keypad, verify Stay/Away/Disarm actions and Fire/Police panic behavior, and label it clearly in your app.
- Ongoing care: battery swaps, function tests, and user training for new family members or staff.
Key Features
- Arm Stay / Arm Away / Disarm right at the door you use most.
- Dedicated emergency keys: Fire and Police panic.
- Long-range wireless: up to ~350 ft (open air) to your wireless control panel.
- Battery powered: runs on two CR2032 coin cells—no new wiring required.
- Compact, durable design: ABS housing, 5.73″ × 4.25″ × 1.00″, 32–120 °F operating range.
Product Specifications (At-a-Glance)
- Model: 2GIG-PAD1-345 (Wireless Keypad)
- Radio: 345.000 MHz (ASK-OOK); supervisory interval ~70 minutes.
- Range: 350 ft (106.7 m) open air to a 2GIG wireless panel.
- Code outputs: digits 0–9, *, #, Stay, Away, Fire, Police; low-battery and supervisory reporting.
- Power: Two (2) CR2032 3V lithium coin batteries (included).
- Dimensions / Weight: 5.73 × 4.25 × 1.00 in, ~7.75 oz.
- Environment: 32–120 °F (0–49 °C); 5–90% RH, non-condensing.
- Certifications: ETL, FCC, IC (and others listed).
Compatibility Notes
- Works as a secondary keypad for 2GIG GC2/GC2e/GC3/GC3e (and commonly deployed alongside EDGE). No display screen—simple 10-key input with function buttons.
Popular Use Cases
- Back/garage entry: arm Stay at night or Away when leaving
- Primary bedroom: quick disarm or Fire/Police panic access
- Office/utility door: give staff a local arming station without moving the main panel
Frequently Asked Questions
No—it's battery powered (two CR2032 coin cells). We mount the backplate and you’re set.
Spec is ~350 ft open air. We test signal during install and adjust placement for reliable supervision and keypress reporting.
Yes—Fire and Police panic keys are built in. We’ll configure how those report to your monitoring center.
If you’re using a 2GIG GC2/GC3 family (including GC2e/GC3e) it’s a match; we confirm during the site survey and enroll it to your account.
Additional Resources
Download ManualReady for Convenient, Door-Side Control?
Smart Shield Systems will place, enroll, and test your 2GIG-PAD1-345 Wireless Keypad, set up Stay/Away/Disarm and panic functions, and train your household—so arming is always just a tap away.
