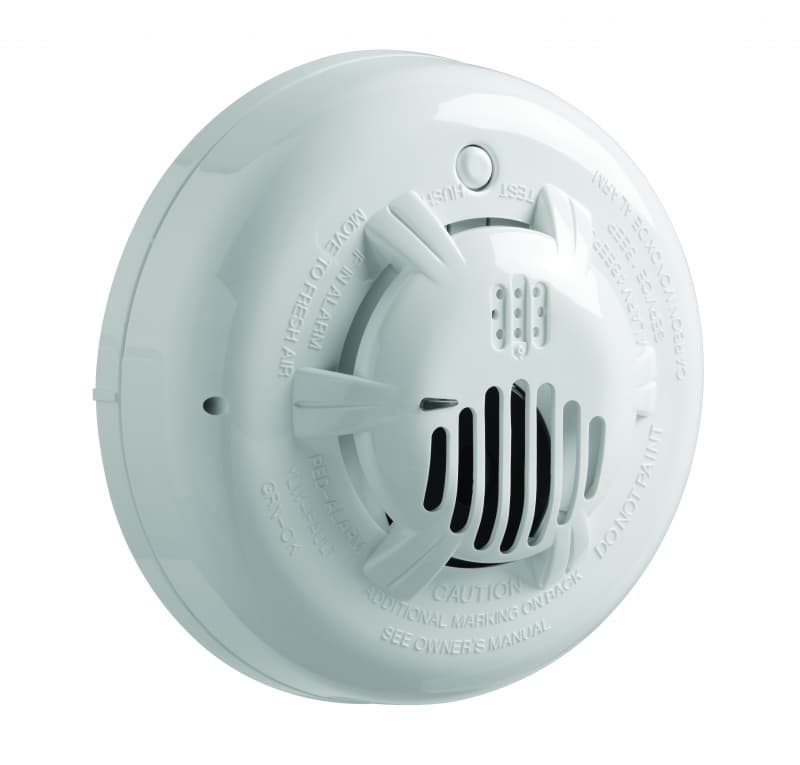

Wireless Carbon Monoxide Detector
The DSC PowerG PG9933 is a professional-grade wireless carbon monoxide (CO) detector for monitored security systems. It uses a sophisticated electrochemical sensor, communicates over PowerG (915 MHz) with 128-bit AES encryption, and provides local 85 dB temporal-4 alarm + flashing LED while also signaling the control panel for alerts and dispatch. A long-life lithium battery (CR123A) delivers typical 5-year life in residential use.
Why Choose This with Smart Shield Systems
- Code-aware placement: we install per the official guide near sleeping areas and on every level for early warning and audibility.
- Professional enrollment & testing: we enroll the serial to your panel, run tamper/Go-No-Go and Test/Hush checks, and document beeper/LED patterns for your home.
- System integration: we configure panel notifications, central-station handling, and mobile alerts for low battery, tamper, and end-of-life.
Key Features
- Electrochemical CO sensing with local alerting (85 dB sounder + large flashing LED).
- PowerG wireless (915 MHz) with 128-bit AES, frequency-hopping, and adaptive power for reliability and battery life.
- Test/Hush button; clear LED/sound patterns for normal, alarm, low-battery, tamper, and end-of-life states.
- Long-life battery: typical ~5 years (CR123A); minimum 1 year per manual.
- UL 2075 listed life-safety device; FCC/IC/UL/ULC approvals.
Product Specifications (At-a-Glance)
- Model: PG9933 (PowerG Wireless CO Detector)
- Operating frequency: 915 MHz (USA/Canada)
- Audible alarm: ≥85 dBA at 10 ft, temporal-4 tone
- Battery: One 3 V CR123A lithium (Panasonic recommended)
- Battery life: 5 years typical; ≥1 year minimum
- Dimensions / Weight: 125.3 × 48 mm (4.9 × 1.9 in); ~197 g (7 oz)
- Environment: 40–100 °F (4.4–37.8 °C); 15–93% RH, non-condensing
- Indicators/controls: Tri-color LED, Test/Hush button, tamper switch
- Transmitted signals: Alarm, tamper, low battery, sensor trouble, supervision heartbeat (≈128 s); RF supervision window 4 h.
Compatibility Notes
- Works with PowerG-capable systems including Qolsys IQ Panel 4 (and other PowerG panels). If you’re reusing PowerG on Qolsys, we’ll confirm panel firmware and enroll cleanly.
- Indoor use only (non-hazardous locations).
Popular Use Cases
- Bedrooms & hallways: primary protection near sleeping areas (per placement guidance).
- Basements/utility rooms: secondary coverage near fuel-burning appliances—installed with proper spacing per the manual.
Frequently Asked Questions
The built-in sounder is at least 85 dB at 10 ft and follows the ANSI temporal-4 CO pattern, with matching LED flashes.
Green = normal heartbeat; red = alarm/test; yellow = trouble/low battery/end-of-life (different flash/chirp intervals). We review these with you during install.
Real-world life is typically up to ~5 years on a CR123A cell; the manual specifies minimum 1 year (extremes of heat/humidity shorten life).
No—this model is not “one-go-all-go.” Your security system will still display the CO alarm and notify per programming.
Yes—CO sensors expire in 5 years; the expiry date is stamped on the device. Replace before that date—don’t wait for the end-of-life chirp.
Press Test/Hush to silence for 5 minutes (alarm) or 12 hours (low-battery). We’ll show you the procedure at handoff.
Additional Resources
Download ManualReady to add monitored CO protection?
Smart Shield Systems will place, enroll, and test your PG9933 PowerG CO detector, set up professional monitoring and mobile alerts, and schedule proactive battery/end-of-life reminders—so your family is protected around the clock.
