Smart Shield Systems

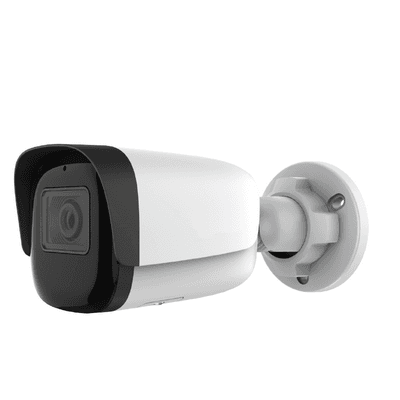

White 4/8mp Fixed IR Bullet Camera
A clean, pro-grade fixed-lens bullet that delivers crisp day/night video. Choose 4MP or 8MP (4K) models with efficient H.265/H.265+, 120 dB True WDR for backlit scenes, rugged IP67 construction, and simple PoE one-cable installs—ideal for driveways, gates, alleys, and building perimeters.
Why Choose This with Smart Shield Systems
- Pro design & placement to cover approaches and lanes without glare or blind spots
- Clean PoE install with sealed junctions and tidy cable management
- Image tuning (WDR, IR, bitrate) matched to your lighting and retention plan
- Ongoing support—health checks, secure remote access, and storage planning
Key Features
- 4MP or 8MP resolution with H.265/H.265+ compression for smaller files and smoother streaming.
- Fixed wide lens options (commonly 2.8 mm; some SKUs also offer 4.0 mm).
- 120 dB True WDR to handle bright entryways and mixed lighting.
- Smart IR night vision typically ~30 m / ~100 ft on fixed bullets (select models up to 50 m / 164 ft).
- Rugged & simple: IP67 weather rating, PoE (802.3af) power/data over one cable.
- Edge recording: microSD slot on many models (often up to 128–256 GB).
- Open compatibility: ONVIF Profiles S/G/T for broad NVR/VMS support.
Compatibility Notes
- Works with most recorders that support ONVIF Profiles S/G/T (Profile T covers modern H.265 streaming, imaging, and alarm events). We’ll verify feature mapping with your NVR/VMS.
- PoE (802.3af) simplifies cabling—no outlet at the camera required.
- Want adjustable framing later? Ask about our motorized varifocal bullet/turret options.
Popular Use Cases
- Driveways & gates (continuous lanes, vehicle approaches)
- Perimeter walls & alleys that need longer IR reach
- Loading zones & storefronts with backlighting (use WDR)
Frequently Asked Questions
Typical fixed bullets list a very wide horizontal FOV (e.g., around 98–113°), great for entries and small-to-mid areas; we’ll place the camera so key details stay centered.
Most fixed 4/8MP bullets rate ~30 m / ~100 ft of IR illumination; some higher-output 4MP bullets list up to 50 m. Real-world range depends on scene reflectivity and mounting height.
In most cases, yes. ONVIF S/G/T support enables broad interoperability with modern NVRs/VMS platforms; we’ll confirm event/analytics support for your setup.
Many models include a microSD slot (often 128–256 GB) for edge recording; we typically pair this with NVR storage for redundancy.
No—PoE carries power and data over a single Ethernet cable from your NVR/switch.
Ready for Pro-Grade Coverage?
Smart Shield Systems will specify the right 4MP or 8MP Fixed IR Bullet, design optimal placement, and install it cleanly with PoE, tuned imaging, and secure remote access—so you get crisp video day and night.
