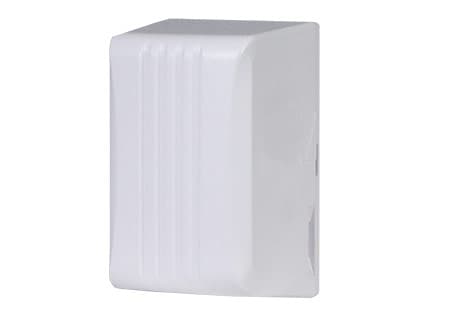

Tilt sensor (2GIG-TILT1E-345)
Keep tabs on garage doors and other hinged openings. The 2GIG-TILT1E-345 is an eSeries encrypted wireless tilt sensor that trips when the device is tilted 45° or more, then restores when it returns to less than 45°. It communicates on 345 MHz and is ideal for garage doors, mailbox doors, large pet doors, and storm-cellar doors.
Why Choose This with Smart Shield Systems
- Correct mounting & testing: we install the sensor near the top panel of the garage door (vertical when closed), verify 45° activation, and confirm restores—so you don’t get nuisance alerts.
- Encrypted where it matters: we pair the TILT1e with your GC2e/GC3e/EDGE panel for authenticated, tamper-resistant signaling and label events clearly in your app.
- Range & battery validation: we RF-test to the panel (~350 ft open air spec) and document the CR2032 battery with 5–8-year typical life.
Key Features
- E-series encryption for secure 345 MHz communication to compatible 2GIG panels.
- 45° tilt trigger with automatic restore below 45°.
- Cover tamper & low-battery reporting to the panel.
- Compact, battery-powered design (CR2032) with ~5–8 years typical life.
Product Specifications (At-a-Glance)
- Model: 2GIG-TILT1e-345 (encrypted); legacy non-encrypted version TILT1-345 also exists.
- Radio / Range: 345 MHz; ~350 ft open air (site-dependent).
- Activation / Restore: trips at ≥45° tilt; restores <45°.
- Power: 1× CR2032 lithium coin cell; ~5–8 yr life (typical).
- Operating env.: 0–120 °F (-17.8–49 °C); 5–85% RH (non-cond.).
- Dimensions: ≈1.72″ L × 1.09″ W × 0.95″ D.
Compatibility Notes
- Works with 2GIG GC2e (FW 1.14+), GC3e, and EDGE; designed for Alarm.com-enabled systems. For non-eSeries legacy 345 MHz panels, use TILT1-345.
- Indoor use only: manufacturer notes no ingress rating and limited outdoor use—mailbox installs may be temperature-dependent.
Popular Use Cases
- Sectional garage doors (primary use)
- Mailbox doors (environment permitting)
- Large pet doors or hinged crawl-space / cellar doors
Frequently Asked Questions
Near the top of the top panel, oriented vertical when closed so it tips past 45° as the door opens.
No. The TILT1e has no ingress rating and an operating range of 0–120 °F; it’s intended for indoor locations (garage interior side).
GC2e (FW 1.14+), GC3e, and EDGE. If you have a non-eSeries 2GIG panel, choose TILT1-345 instead.
A CR2032 coin cell; typical life is about 5–8 years. Your panel will announce low battery well before replacement.
Approximately 350 ft open air; real-world range varies with construction. We test during installation to ensure reliable supervision.
Additional Resources
Download ManualReady to Monitor That Garage Door?
Smart Shield Systems will mount, enroll, and test your 2GIG-TILT1E-345, verify encrypted communication, and set up alerts—so you’ll know instantly when a door is opened.
