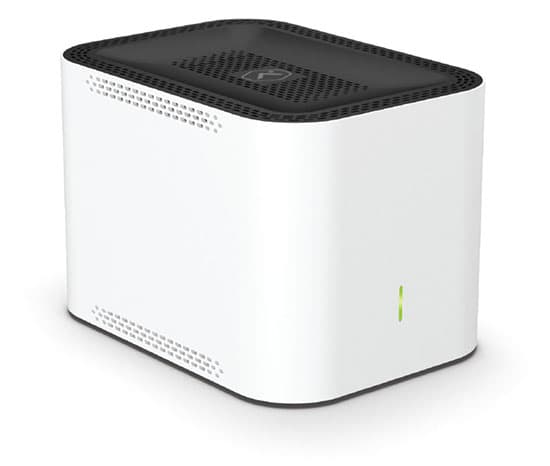

Stream Video Recorder ADC-SVR210
The ADC-SVR210 is Alarm.com’s cloud-managed, 24/7 local recorder for homes and small businesses. It links to your Alarm.com video service to continuously record your cameras, while still giving you remote access, Smart View playback, and clip export from the app or website. Designed for simplicity, it supports up to 8 cameras, HDMI local display, USB 3.0 clip export, and NDAA-compliant hardware.
Why Choose This with Smart Shield Systems
- Pro setup & networking: we land the dual Ethernet ports, build a clean “video network” for your cameras, and enroll everything to your Alarm.com account.
- Retention that fits: we right-size the drive (1 TB or 2 TB) and tune bitrates/schedules to meet your retention goals.
- Local + remote viewing: we enable HDMI live view/playback on a TV/monitor and Smart View for fast searches from your phone.
- Standards & compliance: we document NDAA §889 compliance for projects that require it.
Key Features
- Up to 8 cameras associated to one recorder.
- Local HDMI display for live view and recorded playback; USB 3.0 for clip export.
- Smart View Player in the Alarm.com app/web for timeline search and downloads.
- Dual Ethernet ports to simplify creating a local video network.
- Records up to 4MP (manufacturer product summary) with HDR support noted by distributors. Camera capability and settings determine final recording resolution.
- NDAA-compliant hardware.
Product Specifications (At-a-Glance)
- Model: ADC-SVR210 (Stream Video Recorder)
- Channels / Cameras: Up to 8 cameras associated.
- Local display: HDMI output for live view, playback, and clip export.
- Clip export: USB 3.0 (plus auxiliary USB ports on some units).
- Networking: 2× GbE LAN ports (10/100/1000 Mbps).
- Storage options: accepts 1 TB or 2 TB HDD (3.5" SATA).
- Power: 12 VDC adapter; 32–104 °F (0–40 °C) operating range.
- Size / Weight (approx.): 7.7 × 7.9 × 5.5 in, ~2.55 lb (with 2 TB HDD).
Compatibility Notes
- Platform: Works only with Alarm.com video plans and Alarm.com cameras (PoE or Wi-Fi). Add the SVR in the app or MobileTech and associate your cameras in minutes.
- Use case: Ideal when you want continuous local recording plus cloud clips/analytics from the same cameras.
Popular Use Cases
- Home or small office: always-on recording with quick Smart View searches
- Retail counter / lobby: HDMI monitor for live view + remote review from the app
- Mixed PoE & Wi-Fi sites: use the dual Ethernet ports to keep video traffic tidy
Frequently Asked Questions
Up to eight Alarm.com cameras per SVR210.
Both. Use the HDMI port for local live view/playback, and Smart View in the app/website for remote review and clip downloads.
In the Alarm.com app: More → Add Device → Video Camera → SVR210, then follow prompts; or use MobileTech/customer website to add and associate cameras.
Retention depends on camera count, resolution, and bitrate. We size the drive and tune settings during installation to meet your desired days-of-video target.
Yes—the SVR210 is listed as NDAA-compliant by Alarm.com.
Additional Resources
Download ManualReady for reliable, 24/7 recording?
Smart Shield Systems will install and network your ADC-SVR210, link your cameras, set retention targets, and train you on Smart View—so you get continuous local video and easy remote access.
