Smart Shield Systems
Security & Automation System GC2e Z-Wave

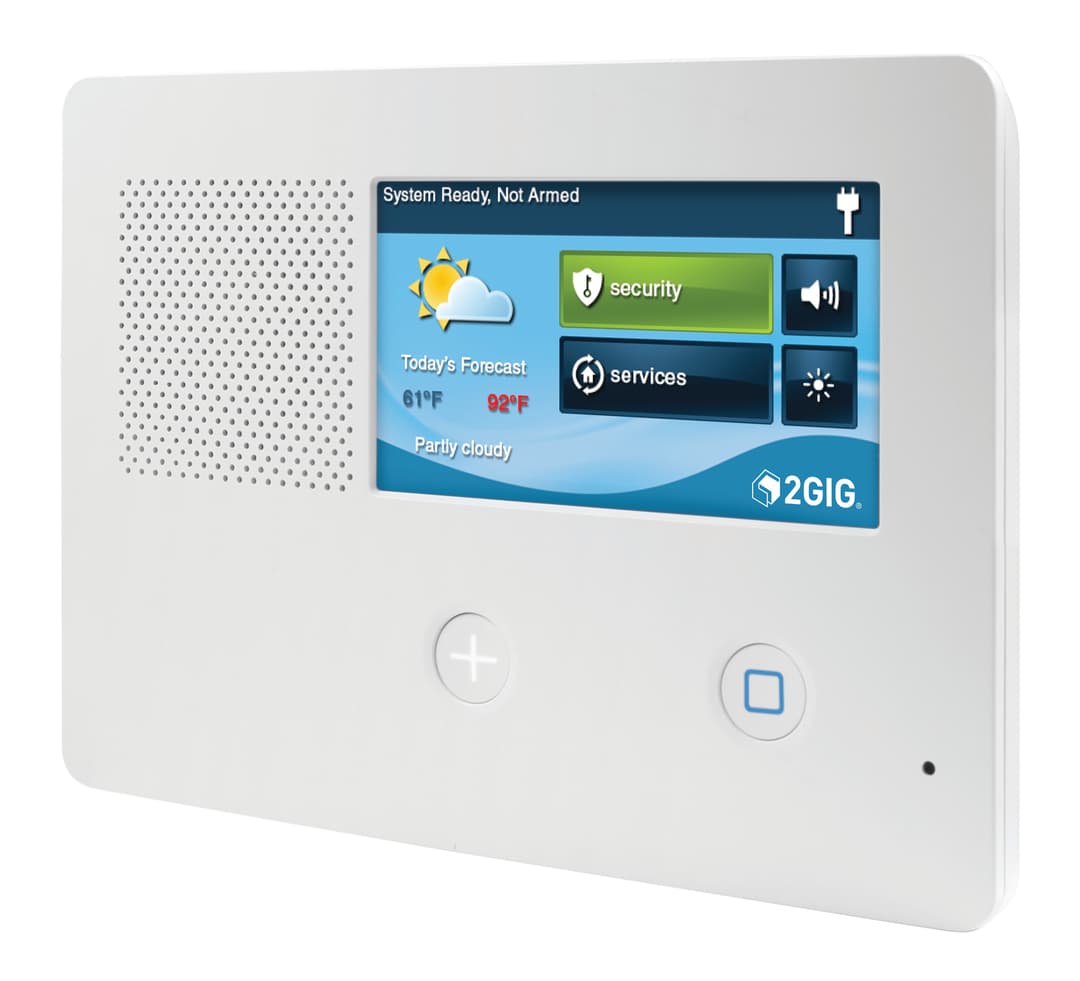

The 2GIG GC2e is a proven, easy-to-use all-in-one security & smart-home panel with a brighter 5″ capacitive touchscreen, eSeries encrypted sensor compatibility, and integrated Z-Wave Plus (S2) for lights, locks, thermostats, and scenes. It supports professional monitoring with LTE cellular modules and works with Alarm.com or SecureNet services.
Why Choose This with Smart Shield Systems
- Professional setup & training: we enroll eSeries encrypted and legacy 345-MHz sensors, add users, and walk you through daily arming.
- Smart-home done right: we pair your Z-Wave Plus devices, build scenes (e.g., Arm Away → lock doors + set back temp), and test automations.
- Reliable communication: we install the right LTE module for your area and link your Alarm.com/SecureNet account for app control and alerts.
- Clean, code-compliant install: neat power, labeled zones, bell output configured, and UL-listed practices followed.
Key Features
- 5″ color capacitive touchscreen with streamlined UI.
- eSeries encrypted sensors (backward-compatible with GC2 family sensors).
- Integrated Z-Wave Plus (S2 security) and scenes; supports up to 232 Z-Wave devices.
- LTE communicator options; Alarm.com and SecureNet compatible.
- Two-way voice with the monitoring center; front-firing speaker for clear audio.
Product Specifications (At-a-Glance)
- Model: 2GIG-GC2E-345 (Security & Control Panel)
- Users & zones: 64 users, 60 wireless zones, 1 wired zone; supports 8 keyfobs & 4 keypads; wired bell output.
- Automation: Integrated Z-Wave Plus (S2); up to 232 Z-Wave devices; scenes.
- Communications: Replaceable LTE radio (AT&T/Verizon options); panel works with Alarm.com or SecureNet backends.
- Power & backup: 100–240 VAC → 14 VDC adapter; Ni-MH backup 2000 mAh (2400 mAh optional). Operating temp: 32–104 °F.
- Certifications: UL 985/1023/1635/1610, ANSI/SIA CP-01:2010, CSFM.
Compatibility Notes
- Sensors: accepts eSeries encrypted devices and legacy GC2 (345 MHz) sensors for easy upgrades.
- Keypads & accessories: GC2e supports 2GIG wireless keypads and touchscreens; certain TS1/IMAGE accessories require the proper GC2e transceiver module/firmware—we’ll confirm during install.
Popular Use Cases
- Whole-home security with door/window contacts, motions, and life-safety detectors
- Smart entry scenes: arming locks doors, sets thermostat, and turns off lights
- Family-friendly access: individual codes for each person; quick arm buttons on the screen
Frequently Asked Questions
Yes—GC2e is backward compatible with GC2-family sensors, while adding support for eSeries encrypted devices for enhanced security.
The GC2e’s integrated Z-Wave Plus (S2) radio supports up to 232 devices and scene automation.
GC2e works with Alarm.com and SecureNet; we’ll provision your LTE module and link the account for mobile arming, alerts, and automation.
The panel includes best-in-class two-way voice and a wired bell output for an external siren if desired.
Yes—the GC2e upgrades to a 5″ capacitive touchscreen with a brighter display and updated UI.
Additional Resources
Download ManualReady to Upgrade to GC2e?
Smart Shield Systems will install and program your 2GIG GC2e, migrate compatible sensors, connect your Z-Wave Plus devices, and set up Alarm.com/SecureNet—so your home is protected and smarter from day one.
