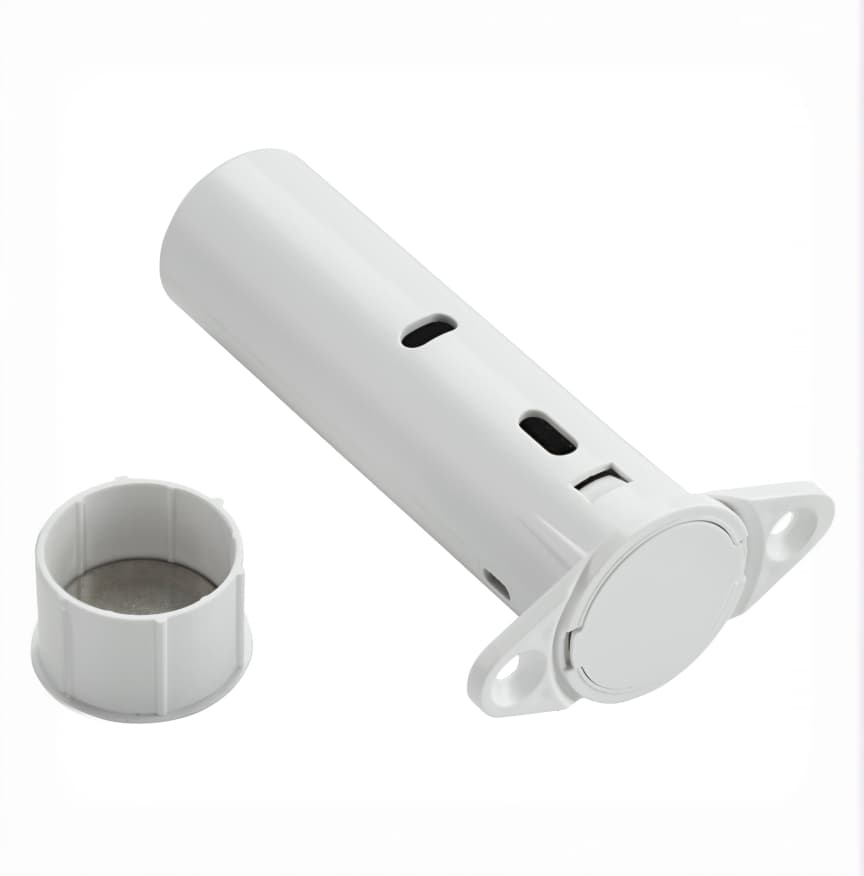

PowerG recessed door/window contact
The DSC PG9307 is a low-profile recessed door/window contact that communicates using PowerG (AES-128, frequency-hopping) for long-range, reliable security. Its ultra-thin 2 mm (0.08″) magnet often installs without drilling the door, and the sensor delivers up to 10 years of battery life on a 3 V CR2 cell. Compatible with Qolsys IQ Panel 4, DSC PowerSeries Neo/Pro, and other PowerG systems.
Why Choose This with Smart Shield Systems
- Clean, hidden look: we recess the transmitter in the frame and use the 2 mm magnet so your trim stays intact.
- Signal verified: we enroll to your PowerG panel and confirm strong supervision and tamper reporting.
- Right panel, right parts: we confirm IQ Panel / Neo / Pro compatibility, match sensor color (white or translucent), and document zone labeling for you.
Key Features
- PowerG 2-way wireless (AES-128, frequency-hopping) for robust, long-range performance.
- Ultra-thin 0.08″ (≈2 mm) magnet reduces or eliminates door drilling; can be surface-mounted when there’s ≥2 mm door-to-frame gap.
- Up to 10-year battery life (typical) on a 3 V CR2 lithium cell.
- Tamper protection and supervised wireless for maintenance alerts.
Product Specifications (At-a-Glance)
- Model: PG9307 (North America PowerG)
- Frequency / RF power: 912–919 MHz, up to +14 dBm.
- Battery: CR2 3 V lithium; up to 10 years typical life.
- Contact size: 2.66″ × 0.75″ (67.5 × 19.05 mm). Weight: ~25 g.
- Magnet size: 0.67″ × 0.08″ (17.0 × 2.03 mm) ultra-thin; magnet cover 0.51″ × 0.75″.
- Operating temp: 14–122 °F (-10–50 °C).
- Colors: White or Translucent (clear).
Compatibility Notes
- Works with PowerG-capable panels including Qolsys IQ Panel 4 / IQ Pro and DSC PowerSeries Neo/Pro; also listed by dealers for iotega and IQ Panel 2 Plus.
- Use the ultra-thin magnet to avoid drilling the door leaf when you have a ≥2 mm gap to the frame. Otherwise, recess both pieces.
Popular Use Cases
- Front & garage entry doors: hidden protection with trim-friendly magnet
- Patio & French doors / windows: recessed look where surface contacts would show
Frequently Asked Questions
A single CR2 3 V lithium cell; life is up to ~10 years in typical residential use. Your panel will report low battery.
Not always. The 2 mm (0.08″) magnet can be surface-mounted if the door-to-frame gap is at least 2 mm; otherwise we recess both parts.
Yes—the PG9307 is a PowerG sensor and is listed as compatible with Qolsys IQ panels (as well as DSC Neo/Pro). We’ll enroll and label it for your system.
The transmitter body is ~2.66″ long × 0.75″ diameter; the magnet is ~0.67″ × 0.08″ (with a 0.51″ × 0.75″ magnet cover).
Yes—the device supervises and reports tamper and low-battery to the panel for service alerts.
Additional Resources
Download ManualReady for a clean, recessed install?
Smart Shield Systems will drill and fit your PG9307, use the ultra-thin magnet to protect your finish where possible, enroll it to your PowerG panel, and test supervision—so your doors and windows are protected without the hardware showing.
