Smart Shield Systems

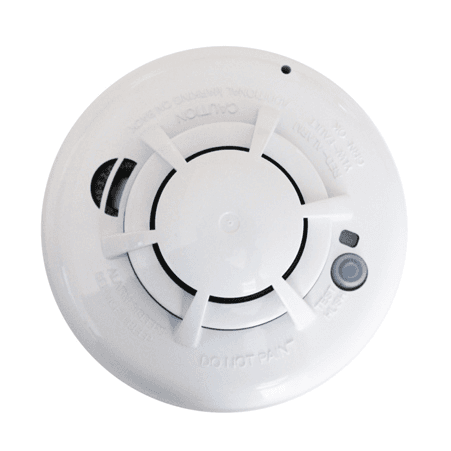

IQ Smoke
Protect your home or business with a wireless, photoelectric smoke & heat detector that talks to your IQ Panel 24/7—even when the system isn’t armed. The IQ Smoke adds fast, reliable life-safety protection with built-in heat and freeze alerts, loud Temporal-3 sirens, and simple testing from a front “hush/test” button.
Why Choose This with Smart Shield Systems
- Professionally designed coverage that follows code best practices for each floor and sleeping area
- Clean, fast installation with battery power (no wiring runs)
- Around-the-clock monitoring with mobile notifications through your IQ system
- Local experts from Smart Shield Systems for setup, testing, and ongoing support
Key Features
- Photoelectric smoke sensing that conforms to UL 217 standards.
- Integrated heat detection: high-temp alarm at 135°F and rapid rise-in-heat detection for fires that may not produce immediate smoke.
- Built-in freeze warning: sends a trouble alert around 41°F to help prevent cold-weather damage.
- Always-on protection (monitored whether the panel is armed or disarmed).
- Loud alerting & clear status: 85 dBA Temporal-3 sounder with tri-color LED and a front hush/test button for quick checks.
Product Specifications (At-a-Glance)
- Model / Part #: IQ Smoke / QS5110-840.
- Wireless: 319.5 MHz; nominal open-air range up to 600 ft.
- Power: 3× AAA batteries (included); 3–5 year typical life.
- Audible Alarm: ≥85 dBA (ANSI Temporal-3).
- Sensitivity: 1.5–3.5 %/ft; spacing up to 70 ft (typical).
- Operating Environment: 40–100°F, 15–90% RH (non-condensing).
- Dimensions: 5.0″ diameter × 2.5″ high.
Compatibility Notes
- Works with 319.5 MHz IQ Panels and other compatible 319.5 MHz receivers (e.g., select GE/Interlogix systems). Ask us to confirm your setup.
- This device detects smoke, excessive heat, and freeze conditions. For carbon monoxide protection, add a dedicated CO detector. (We’ll help you pick the right one.)
Popular Use Cases
- Hallways outside bedrooms and on every level of the home
- Living rooms, stairways, basements (per code guidance)
- Utility rooms—pair with a CO detector where combustion appliances are present
Frequently Asked Questions
Per fire-code best practices, install smoke detectors outside sleeping areas and on every level, including basements. Avoid installing directly in kitchens or garages to reduce nuisance alarms; we’ll design placement during your site visit.
No. The IQ Smoke is for smoke/heat/freeze. Add a dedicated CO detector for carbon monoxide. We can bundle both for full life-safety coverage.
It sounds at ≥85 dBA with the ANSI Temporal-3 pattern. Use the front hush/test button for routine testing; your panel will also supervise battery and trouble conditions.
Vacuum or use compressed air around the detector vents periodically to remove dust; replace the AAA batteries when prompted (typically 3–5 years). We’ll show you how during installation.
Yes—when paired with your monitored IQ system, you can receive mobile notifications for alarms, low battery, and freeze warnings.
Ready to Add Life-Safety Protection?
Smart Shield Systems will design, install, and monitor the IQ Smoke (QS5110-840) so your property is protected day and night—and you’re kept in the loop. Get your free quote today.
