IQ Smart Socket
Upgrade any room with a clean, in-wall duplex outlet you can control from your IQ Panel and mobile app. The IQ Smart Socket gives you two controllable receptacles in a single faceplate—perfect for lamps, space heaters (within rating), dehumidifiers, holiday lights, and more. Available in the latest PowerG model for long-range, encrypted reliability; a legacy Z-Wave model is also supported for older IQ systems.
Why Choose This with Smart Shield Systems
- Pro design & installation that follows electrical codes and best practices
- Hands-on training so everyone knows how to control and automate each outlet
- 24/7 support & monitoring through your IQ system and app
- Future-proof options: PowerG for new IQ panels, Z-Wave for compatible legacy setups.
Key Features
- Two independently controlled outlets in a single, tamper-resistant wall receptacle. Local buttons and status LEDs for each outlet.
- PowerG model (IQSKT-PG): Long-range, encrypted wireless designed for IQ Panel 4 / IQ Pro / IQ4 Hub/NS (PowerG versions).

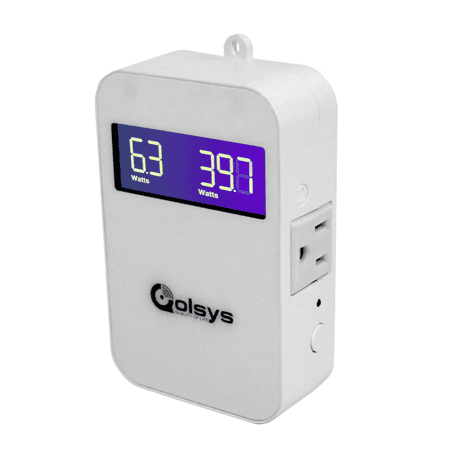

- Z-Wave model (QS-2100-P01): Dual Z-Wave outlet with real-time energy usage on the device and on the IQ Panel, plus historical energy reporting.
- Smart rules & scenes: Automate schedules (e.g., turn on a lamp at sunset, shut off a space heater when you arm “Away”).
- Safety-minded design: Indoor use, total 15A / 1800W maximum for both outlets combined.
Product Specifications (At-a-Glance)
- PowerG IQ Smart Socket (IQSKT-PG)
- Protocol / band: PowerG, 912–919 MHz.
- Load rating: Total 15A, 1800W @ 120VAC resistive across both outlets; standby <1W.
- Electrical: Input 120VAC 60Hz; output 120VAC 60Hz; requires line, neutral, and ground.
- Environment: 32–104°F (0–40°C); 0–90% RH, non-condensing; indoor/dry locations only.
- Controls/indicators: Individual on/off buttons with LEDs per outlet; tamper-resistant.
- Size: ~4.55" × 2.78" × 1.83". Certifications include FCC / ISED; ETL listed for home automation.
- Z-Wave IQ Smart Socket (QS-2100-P01)
- Protocol: Z-Wave; two individually controlled outlets with green status LEDs.
- Energy features: Real-time and historical energy usage reporting on the device LCD and on the IQ Panel/mobile.
- Load rating: Max 15A / 1800W total.
Compatibility Notes
- PowerG IQ Smart Socket (IQSKT-PG): Works with IQ Panel 4, IQ Pro, IQ4 Hub/NS (PowerG versions).
- Z-Wave IQ Smart Socket (QS-2100-P01): Ideal for earlier IQ panels with Z-Wave; offers energy metering that the PowerG version does not advertise.
- For outdoor control, use dedicated outdoor-rated modules—this in-wall socket is indoor/dry-location only.
Popular Use Cases
- Lamps and accent lighting with schedules and away-mode scenes
- Space heaters or dehumidifiers (within rating) that should turn off automatically when you arm the system
- Holiday/seasonal lights and window candles
- AV gear or networking gear you occasionally power-cycle remotely
Frequently Asked Questions
Yes. Each receptacle has its own on/off control and LED—locally on the faceplate and via your IQ Panel/app.
The total combined load is 15 Amps (1800W @ 120VAC resistive) for both outlets together. Do not exceed this limit.
The Z-Wave model (QS-2100-P01) supports real-time and historical energy reporting. The PowerG model documentation does not list energy metering. If energy analytics matter, we can use the Z-Wave version or a dedicated metering plug.
It’s indoor, dry-location only. For damp or outdoor locations, ask us about appropriate, listed alternatives.
Yes. As a hard-wired in-wall outlet, the PowerG model requires line, neutral, and ground connections. Our licensed technicians will handle the wiring and code compliance.
PowerG model: IQ Panel 4, IQ Pro, IQ4 Hub/NS (PowerG).Z-Wave model: Works with compatible Z-Wave-equipped IQ panels; we’ll confirm your exact setup.
Additional Resources
Download ManualReady to Add Smart Control?
Smart Shield Systems will design the right automations, install your IQ Smart Socket, and show you how to control each outlet from your panel and phone—safely and reliably. Get your free quote today.
