IQ Panel 4

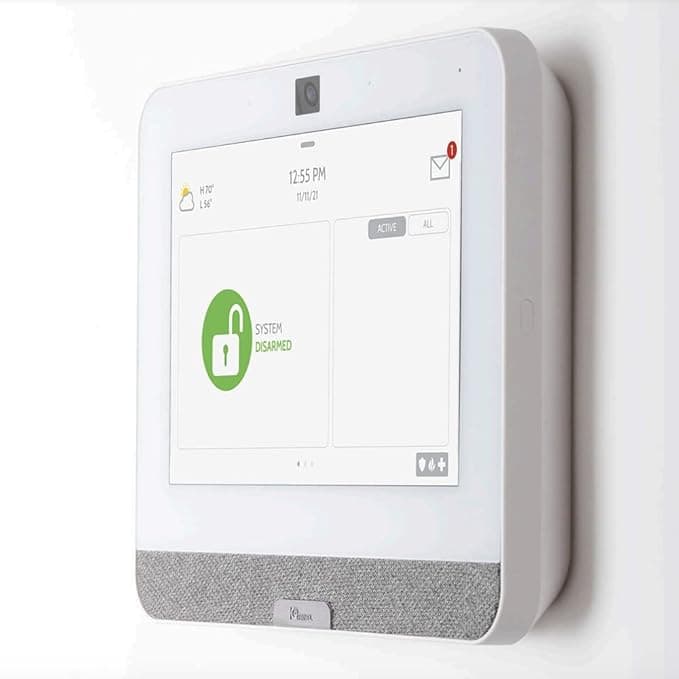

The Qolsys IQ Panel 4 is a modern all-in-one security and smart-home hub with a 7″ capacitive touchscreen, dual-path LTE + Wi-Fi, Z-Wave 700 series, and PowerG long-range encrypted sensors. It adds an 8MP wide-angle panel camera, Bluetooth Touchless Disarming, built-in glass break detection, and Live View/Live Answer for compatible Alarm.com cameras and doorbells. Quad speakers deliver clear voice prompts and Bluetooth audio streaming.
Why Choose This with Smart Shield Systems
- Pro setup, fast: SmartMount install, on-screen wizard, and clean power/cabling so you’re up and running quickly.
- Device migration help: We enroll PowerG and (model-dependent) legacy RF sensors, label zones, and test supervision/tamper reporting.
- Smart-home integration: We add Z-Wave 700 lights/locks/thermostats and set scenes you can run from the panel or app.
- Video on the panel: We enable Live View/Live Answer for supported Alarm.com cameras/doorbells.
Key Features
- 7″ LCD (1280×800) multi-touch display.
- Dual-path communications: LTE Cat-4 (multi-band) + dual-band 2.4/5 GHz Wi-Fi (with built-in access-point capability).
- PowerG encrypted sensors (up to 128 devices); Security RF support varies by model (319.5 / 345 / 433 MHz).
- Z-Wave Plus (700 series): up to 137 devices (breakdown for lights, locks, thermostats, garage, misc.).
- 8MP panel camera (120° FOV) with Flex-Tilt, disarm photos, alarm videos, and peek-ins.
- Built-in glass break, Bluetooth Touchless Disarming, QuadSound (4×4 W speakers, 85 dB siren).
Product Specifications (At-a-Glance)
- Model family: IQ Panel 4 (variants for 319.5 / 345 / 433 MHz legacy RF + PowerG)
- Display: 7″ LCD, 1280×800, ~300 cd/m² brightness; capacitive multi-touch.
- Comms: Wi-Fi 802.11 a/b/g/n/ac (2.4/5 GHz, AP capability); LTE Cat-4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 non-FirstNet, 26).
- Automation: Z-Wave 700 up to 137 devices.
- Sensors: PowerG up to 128 devices; Security RF up to 128 devices (model-dependent band).
- Audio/Mics: QuadSound 4×4 W front speakers; 3× MEMS mics with echo cancellation.
- Bluetooth: BLE 4.2 (disarm & audio streaming).
- Panel cam: 8MP, 120° FOV, fixed-focus, Flex-Tilt.
- Battery: 18650 Li-ion 3000 mAh, rated 24+ hours.
- Processor/OS/Storage: 8-core Qualcomm Snapdragon, Android 9, 16 GB NAND.
- Size/Power: 6.1″H × 7.5″W × 1″D; 7 VDC 1000 mA adapter (100–240 VAC).
- Certifications: UL-985, UL-1023, UL-2610, ULC S545/S304; FCC/IC listed.
Compatibility Notes
- Choose the IQ Panel 4 variant that matches any legacy sensor band you want to reuse (319.5 / 345 / 433 MHz). All variants include PowerG.
- Live View/Live Answer requires supported Alarm.com cameras/doorbells and enabling Stream Video to Security Panel Screen in the Alarm.com account.
Popular Use Cases
- Whole-home security: PowerG perimeter + motions/life-safety, with disarm photos and alarm clips from the panel cam.
- Smart automations: Z-Wave scenes for Arm Away → lock doors, set back temp, turn off lights.
- Video-first entryways: Live Answer doorbells from the panel; greet visitors hands-free.
Frequently Asked Questions
Yes—pick the model that matches your legacy band (319.5 / 345 / 433 MHz) and you’ll also get PowerG for new, encrypted sensors. We’ll confirm compatibility during install.
Up to 137 total (80 lights, 20 locks, 10 thermostats, 6 garage doors, 21 misc.), per the Z-Wave 700 spec on the panel.
Yes—enable Stream Video to Security Panel Screen in Alarm.com and select which cameras can Live View/Live Answer on the panel. (qolsys.reamaze.com)
The panel includes an 85 dB siren and QuadSound (4×4 W) speakers for loud, clear prompts—and even Bluetooth music streaming.
Additional Resources
Download ManualReady to upgrade your command center?
Smart Shield Systems will install, program, and personalize your IQ Panel 4, migrate sensors, set up Z-Wave scenes, and enable camera Live View/Live Answer—so your security and smart home feel seamless from day one.
