Product Description

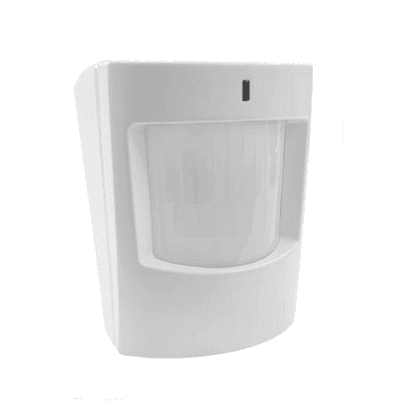

The IQ Motion-S is an encrypted PIR that is as powerful as it is affordable. Leveraging our proprietary S-Line Technology it encrypts signals sent to the IQ panel while still providing support for legacy 319.5 systems. Pet immune up to 40 pounds, the IQ Motion-S is designed to mount on a flat surface or in a corner.

FEATURES
– Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
– Provides security coverage up to 30’ in a large open area
– Use to create rules such as “When someone enters the room, turn on light” or “Trigger alarm when intruder detected”
– Pet immune up to 40 lbs

SPECIFICATIONS
– Code outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
– Transmitter frequency: 319.5MHZ +-15KHz
– Transmitter bandwidth: 24KHZ
– Modulation type: ASK-OOK
– RF output power 91.1dBuV +/- 5% at 3m
– Sensor Range 30 ft (9.1 m) x 40 ft (12.2 m)
– Maximum Horizontal Sensing Angle 80°
– Operating Temperature: -10˚C~50˚C
– Relative Humidity: 5-95%
– Non-Condensing Storage Temperature: -40˚C to 80˚C

Download Manual
