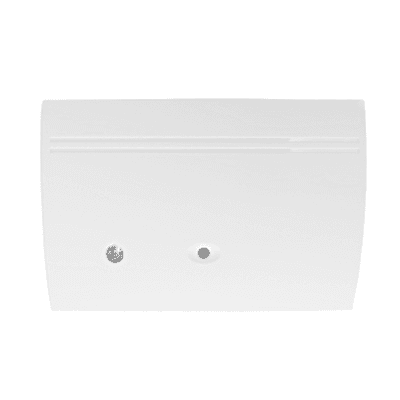

IQ Glass-S
Protect rooms with windows, sliders, or glass doors using an acoustic glass-break sensor that listens for the specific frequency pattern of breaking glass. The IQ Glass-S uses S-Line encrypted 319.5 MHz signaling to your IQ Panel and is designed to be effective within typical living spaces—clean install, battery powered, and professionally tuned by Smart Shield Systems.
Why Choose This with Smart Shield Systems
- Pro placement & tuning for sensitivity and coverage in each room
- Clean, wireless install—no wall fishing or new wiring
- Works with your IQ Panel and standard arming routines (Stay/Away)
- Local support from Smart Shield Systems for testing and ongoing service
Key Features
- Acoustic detection of breaking glass; effective within up to ~20 ft line-of-sight in typical rooms.
- S-Line encryption with backward compatibility for legacy 319.5 MHz systems.
- Active when armed in Stay or Away modes—no need to bypass before bed.
- Long wireless range to the panel (open-air) and supervised health checks for reliability.
- Installer-adjustable sensitivity to help reduce nuisance alarms in echo-prone rooms.
Product Specifications (At-a-Glance)
- Model / Part #: IQ Glass-S / QS1431-840.
- Detection range: up to 20 ft (MAX setting); selectable 13 ft, 8 ft, 5 ft via DIP switches.
- Panel radio: 319.5 MHz S-Line (encrypted on compatible IQ panels).
- Wireless range to panel: up to ~600 ft (open air).
- Power: 2× CR123A 3 V lithium batteries (included).
- Operating temp: 14–122 °F (-10–50 °C); supervisory check-in ~70 min.
- Dimensions: 2.75″ H × 3.88″ W × 1.5″ D.
- Mounting guidance: keep at least 3.3 ft from protected windows and 4 ft from noise sources (place on opposite wall or ceiling when practical).
Compatibility Notes
- Works with IQ Panels using 319.5 MHz; S-Line encryption on compatible IQ models, and legacy 319.5 MHz panels supported unencrypted.
- Automatically participates in arming modes (Stay/Away) for day-to-day use.
Popular Use Cases
- Family rooms or dens with multiple windows
- Sliding glass doors and large plate-glass areas
- Basements or sunrooms with hard surfaces that carry sound
Frequently Asked Questions
Install on a wall opposite the windows being protected or on the ceiling (in rooms with windows on multiple sides). Keep it at least 3.3 ft from the glass and 4 ft from noise sources (speakers, TVs, HVAC). We’ll verify coverage during testing.
When set to MAX, the sensor is rated for up to 20 ft line-of-sight to the glass; lower ranges (13 ft, 8 ft, 5 ft) are selectable to match the room.
Yes. The IQ Glass-S listens whenever the system is armed—including Stay—so perimeter windows can be protected while you’re home.
Open-air radio range to the panel is listed up to ~600 ft; actual range depends on construction and placement. We confirm signal strength during installation.
We tune sensitivity using the built-in DIP switches, mount at recommended distances, and avoid noisy sources in the immediate vicinity—best practices that keep protection high and nuisance trips low.
Additional Resources
Download ManualReady to Add Glass-Break Protection?
Smart Shield Systems will place, program, and sensitivity-tune your IQ Glass-S (QS1431-840), then test with your IQ Panel so you have reliable coverage from day one.
