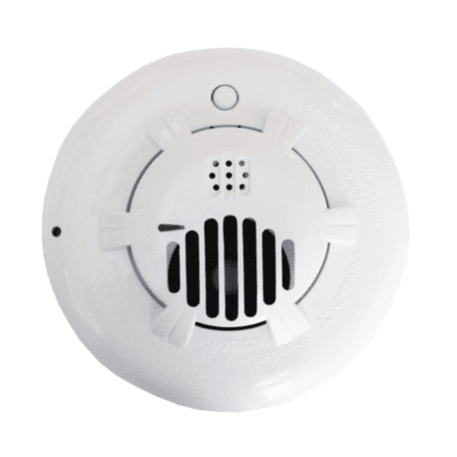

IQ Carbon

Why Choose the IQ Carbon with Smart Shield Systems

• Professionally designed coverage for sleeping areas and key locations

• Clean, fast installation with wireless enrollment—no new wires

• Around-the-clock monitoring with mobile notifications through your IQ system

• Local experts from Smart Shield Systems for setup, testing, and ongoing support

Key Features

• 24/7 life-safety monitoring whether your system is armed or disarmed; panel can sound and notify monitoring on CO alarms.

• Electrochemical CO sensing with front test/hush button for functional checks and temporary silencing.

• Loud alerting: ANSI Temporal-4, ≥85 dBA at 10 ft, plus panel siren/alerts.

• Supervised & secure: Reports alarm, tamper, low battery, and end-of-life conditions to the panel.

• Long-range wireless: 319.5 MHz radio, up to ~600 ft open air (ideal for larger homes).

Technical Highlights (At-a-Glance)

• Model / Part #: IQ Carbon / QS5210-840

• Power: 1× CR123A 3V lithium (Panasonic) — typical 3–5 yr battery life

• Audible Alarm: Temporal-4, ≥85 dBA @ 10 ft; test/hush supported

• Wireless: 319.5 MHz; range ~600 ft (open air)

• Operating Environment: 40–100°F (4.4–37.8°C), 15–95% RH non-condensing

• Dimensions: ≈5.0″ diameter × 2.5″ high (wall or ceiling mount)

• Listings/Standards: Designed to meet UL 2034, UL 2075, CSA 6.19-01 (per product documentation)

Compatibility Notes

• Enrolls to IQ Panels using 319.5 MHz; also compatible with select GE/Interlogix 319.5 MHz systems. We’ll confirm panel model/firmware before install.

• Program the sensor as a carbon monoxide zone type (not a fire zone) per installation guidance.

Popular Use Cases

• Hallways outside bedrooms and on every level of the home

• Inside or near rooms with fuel-burning appliances (per placement guidance)

• Basements or attached-garage areas where CO can accumulate

Frequently Asked Questions

Where should the IQ Carbon be installed?

Follow life-safety best practices: within ~10 ft of sleeping areas, on each level, and near fuel-burning appliances. Mount on the ceiling (≥12″ from walls) or on the wall (≥6″ below the ceiling, above switch height). We’ll finalize placement during your site visit.

Will it work if my system is disarmed?

Yes. The IQ Carbon is monitored 24/7 and can trigger the panel and monitoring center even when disarmed.

How long does it last?

The detector includes an end-of-life feature and should be replaced about 5 years from the date of manufacture. Your panel will display trouble/end-of-life messages. Battery life is typically 3–5 years and is also supervised.

How loud is the alarm, and can I hush it?

It sounds Temporal-4 at ≥85 dBA. Press the hush button to silence temporarily (while conditions are checked); the panel still records and reports the event.

Does this replace smoke detection?

No—this device is for carbon monoxide. Pair it with IQ Smoke detectors for smoke/heat protection. We’ll design a complete life-safety plan for your space.

Ready to Add CO Protection?

Smart Shield Systems will design, install, and monitor the IQ Carbon (QS5210-840) so your property is protected day and night—and you’re kept in the loop. Get your free quote today.
