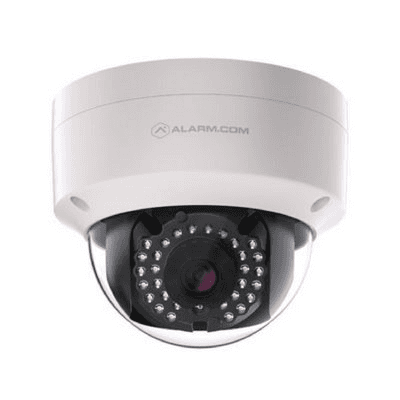

Indoor/Outdoor Dome Camera Adc-Vc825
A compact, vandal-resistant PoE dome built for reliable Alarm.com video. The ADC-VC825 records in 720p HD, delivers IR night vision up to ~95 ft (30 m), and carries an IP66 weather rating—ideal for homes and small businesses that want a clean, fixed-lens dome with pro performance.
Why Choose This with Smart Shield Systems
- Pro placement & tuning for clear faces and entry coverage, day or night.
- Neat, secure wiring with Power over Ethernet (PoE) or 12 V DC where required.
- End-to-end setup on Alarm.com, including recording rules and mobile access.
- Local support from Smart Shield Systems for health checks and retention planning.
Key Features
- PoE networking (single-cable power + data) with IP66 outdoor rating and vandal-resistant housing.
- 720p HD video using H.264; fixed 2.8 mm lens with a 106° field of view.
- IR night vision to ~30 m / ~95 ft; 0 lux with IR.
- Adjustable aim behind the dome (pan 0–355°, tilt 0–75°, rotate 0–355°).
- Works with Alarm.com Stream Video Recorders (SVR) for 24/7 local recording.
Product Specifications (At-a-Glance)
- Model: Alarm.com ADC-VC825 (wired PoE dome)
- Video resolutions: live 1280×720, 640×360, 320×180, 176×100; recording 1280×720 (H.264)
- Image sensor: 1/2.8″ progressive-scan CMOS; lens: 2.8 mm F2.0; FOV: 106°
- IR range: up to 30 m (~95 ft); 0 lux with IR
- Power/network: PoE (802.3af) or 12 V DC (≈5 W); 10/100 RJ-45 Ethernet
- Housing: IP66 weather rating; vandal-resistant mini dome
- Simultaneous viewers: up to 6 (account-dependent)
Compatibility Notes
- Requires an active Alarm.com Video service plan; can be paired with SVR100/SVR210/CSVR for continuous local recording.
- Discontinued by manufacturer; typical replacement is ADC-VC826 (1080p PoE dome). We’ll confirm availability or propose the VC826 on your quote.
Popular Use Cases
- Front or rear entry doors and lobbies (wide 106° view)
- Covered exteriors and corridors needing vandal resistance and PoE
- Small business interiors tied to Alarm.com alerts and schedules
Frequently Asked Questions
Wired. It’s a PoE (or 12 V DC) camera with Ethernet networking—not Wi-Fi.
Built-in IR LEDs illuminate to ~95 ft (30 m) and the camera can see at 0 lux with IR.
With its 2.8 mm fixed lens the camera covers about 106° horizontally—great for doorways and small-to-mid rooms.
Yes. Pair it with an Alarm.com SVR (e.g., SVR100 or SVR210/CSVR) to capture 24/7 footage in addition to cloud clips.
The VC826 is the newer 1080p PoE dome with similar form factor; the VC825 is the earlier 720p model. We’ll recommend the right unit based on availability and your needs.
Additional Resources
Download ManualReady for a Clean, Pro-Grade Dome?
Smart Shield Systems will specify, install, and tune your ADC-VC825 (or current VC826 replacement), set up Alarm.com recording, and optimize your alerts and retention—so you get dependable video day and night.
