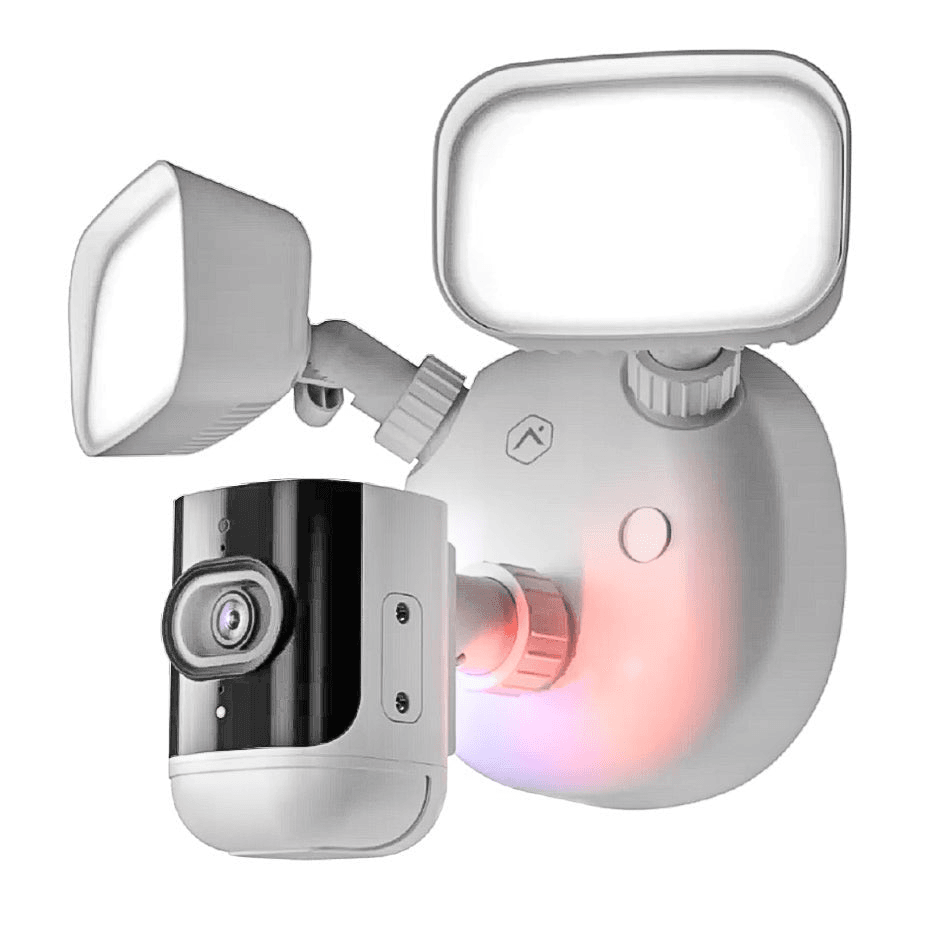

4MP Outdoor Floodlight Camera ADC-V729
The Alarm.com ADC-V729 pairs a 4MP security camera with a 3,000-lumen, 4000K floodlight, Two-Way Audio, and proactive deterrence (red/blue warning lights + siren). It supports Video Analytics and Onboard Recording with Smart View, so you get smarter alerts and continuous, encrypted local video alongside your cloud clips.
Why Choose This with Smart Shield Systems
- Smarter deterrence setup: we enable Perimeter Guard™ (voice/tones + flashing lights) and tune people/vehicle/animal analytics to cut false alerts.
- Clean, code-aware install: we mount to an exterior box, align the dual LEDs and camera for faces/plates, and verify night IR coverage (~15 m).
- Right power model for your home: choose DC (24V PSU), AC hardwired (100–240V), or PoE++ (802.3bt)—we confirm site power and network before install.
Key Features
- 4MP video with HDR/WDR options for tricky lighting.
- 3,000-lumen floodlights (4000K) with strobe modes; red/blue warning lights and siren for active deterrence.
- Two-Way Audio for talk-down from the Alarm.com app.
- Video Analytics (people/vehicle/animal) + Onboard Recording with Smart View (encrypted local recording).
- Dual-band Wi-Fi (2.4/5 GHz); IP66 weather rating; IR night vision ~15 m and 0.5 lux low-light sensitivity.
Product Specifications (At-a-Glance)
- Models: ADC-V729 (DC 24V PSU) • ADC-V729AC (100–240VAC) • ADC-V729P (24V DC or PoE++ 802.3bt).
- Sensor / Resolution: 4MP 1/2.7″ CMOS; live/record up to 2688×1520 (H.264).
- Field of View: 117° H / 62° V / 141° D.
- Lighting: 3,000 lumens, 4000K; strobe + red/blue warning lights.
- Night / Low-light: IR range ~15 m; 0.5 lux sensitivity.
- Networking: Wi-Fi 802.11 a/b/g/n/ac (2×2 MIMO); PoE++ on V729P; 10/100 RJ-45 (V729P).
- Environment: IP66, –20 °C to 50 °C; 20–100% RH.
- Dimensions: 305 × 235 × 198 mm (L×W×H).
Compatibility Notes
- Requires an Alarm.com video service plan; we’ll add the camera via AP mode/WPS and confirm recording/alerts.
- Power choices matter: DC and PoE/PoE++ versions use 24V DC (PoE++ for the V729P); the V729AC wires to 100–240VAC. We’ll validate your junction box and supply.
Popular Use Cases
- Driveways & front entries: light up visitors, talk-down, and capture clean faces with HDR.
- Side yards & gates: analytics watch zones/lines and trigger strobe + red/blue warnings after hours.
- Back patios: wide 117° view plus Two-Way Audio for deliveries and guests.
Frequently Asked Questions
V729 (DC): powered by 24V DC PSU.
They’re 3,000 lumens at 4000K. You can choose full-on floodlight or strobing effects, and also enable red/blue warning lights and the siren for deterrence.
Yes—Onboard Recording with Smart View provides encrypted, 24/7 local video alongside cloud clips (we’ll configure storage during setup).
The camera has IR up to ~15 m (≈49 ft) and 0.5-lux low-light sensitivity; we place and aim it to optimize faces/plates after dark.
We onboard via AP mode or WPS (Wi-Fi models) or directly via Ethernet/PoE++ (V729P), then enroll it to your Alarm.com account.
Additional Resources
Download ManualReady to light, deter, and capture?
Smart Shield Systems will power and mount your ADC-V729, tune analytics and deterrence, and verify Wi-Fi/PoE and recording—so your exterior is bright, secure, and always on-camera.
