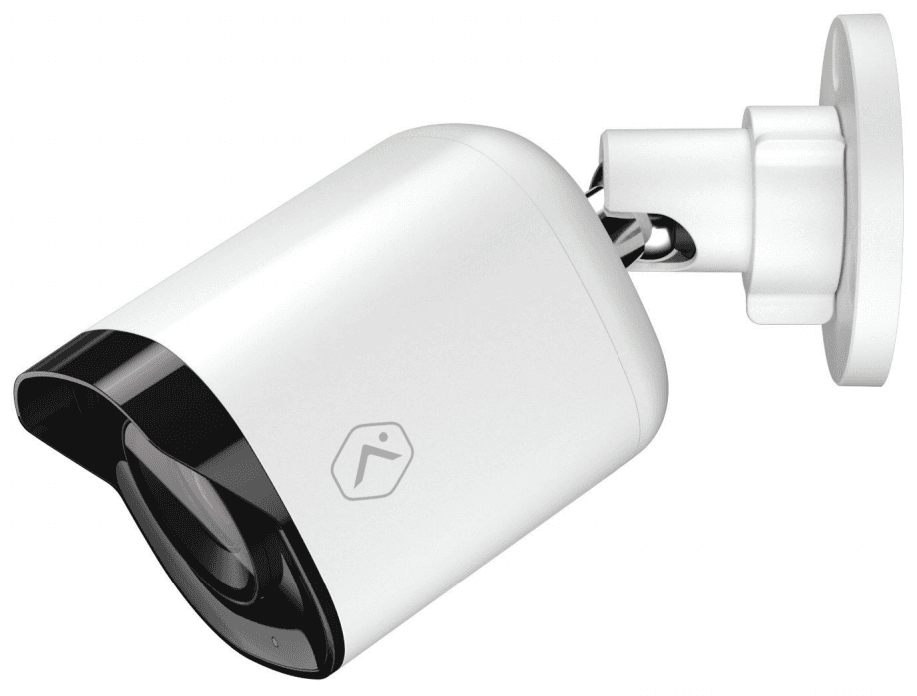

4MP Indoor/Outdoor Varifocal Bullet Camera
The Alarm.com ADC-VC728PF is a Pro Series, PoE mini-bullet with a motorized varifocal lens for remote zoom/focus and 4MP WDR/HDR imaging. It supports Video Analytics, Business Activity Analytics (BAA), Onboard Recording with Smart View (microSD), and CSVR for 24/7 capture—inside or out. IP66, NDAA §889 compliant, and built for pro installs.
Why Choose This with Smart Shield Systems
- Pro framing & zoom: we mount, then remotely set focal length & autofocus to nail faces, plates, and entry lines.
- Smarter alerts: we enable Video Analytics and, where appropriate, Perimeter Guard™ (LED + audio warning) for active deterrence.
- Right storage mix: we configure cloud clips, Onboard Recording (encrypted microSD), and/or Commercial SVR for continuous recording.
Key Features
- Motorized varifocal lens: 3.2–9.8 mm, remote zoom/focus; F1.8–F3.3, 116°–34° FOV.
- 4MP WDR/HDR video (4MP recording supported on Commercial SVR).
- IR night vision up to ~95 ft (30 m); 0 lux with IR.
- Video Analytics + BAA (occupancy, people counting, queue, crowd, heat maps).
- Perimeter Guard™ (LED + audio alert; requires firmware 0.6.3.601+).
- Onboard Recording with Smart View (encrypted microSD timeline).
- PoE (802.3af) or 12 VDC power; IP66 housing; –22° to 122 °F operating range.
Product Specifications (At-a-Glance)
- Model: ADC-VC728PF (Pro Series varifocal bullet)
- Resolutions: 2688×1520*, 1920×1080, 1280×720, 640×360 *4MP recording on CSVR.
- Sensor: 1/2.7″ progressive scan CMOS.
- Lens / FOV: 3.2–9.8 mm, F1.8–F3.3, 116°–34°.
- IR range: ~95 ft (30 m); 0 lux with IR.
- Network: 10/100 RJ-45, PoE (802.3af).
- Power: PoE or 12 VDC ±10% (adapter optional).
- Size / Weight: 6.8 × 3.0 × 3.0 in, 19.1 oz.
- Ratings: IP66, FCC/IC/CE/UL, NDAA §889 compliant.
Compatibility Notes
- Works in the Alarm.com video ecosystem: cloud clips, Video Analytics/BAA, Onboard Recording (microSD), and Commercial SVR continuous recording.
Popular Use Cases
- Driveways & loading zones: zoom to tighten on gates/plates while analytics watch lines/zones.
- Retail fronts & lobbies: BAA for occupancy, queues, heat maps; Perimeter Guard™ after-hours.
- Perimeter corridors & alleys: long IR range and varifocal framing for clean evidence.
Frequently Asked Questions
Wired Ethernet. Use PoE (802.3af) or 12 VDC power.
Yes—hardware supports 4MP; 4MP recording is available when using a Commercial SVR (cloud clips remain up to 1080p).
Infrared illumination reaches about 95 ft (30 m) in darkness.
Yes—Perimeter Guard™ enables a flashing LED and audio alert on supported firmware (0.6.3.601+).
Business Activity Analytics adds occupancy, people counting, queue monitoring, crowd detection, and heat maps for operational insights.
Additional Resources
Download ManualReady for pro-grade, zoom-ready coverage?
Smart Shield Systems will mount, aim, and enroll your ADC-VC728PF, tune zoom/focus and analytics, and set up storage—so you capture exactly what matters, day or night.
