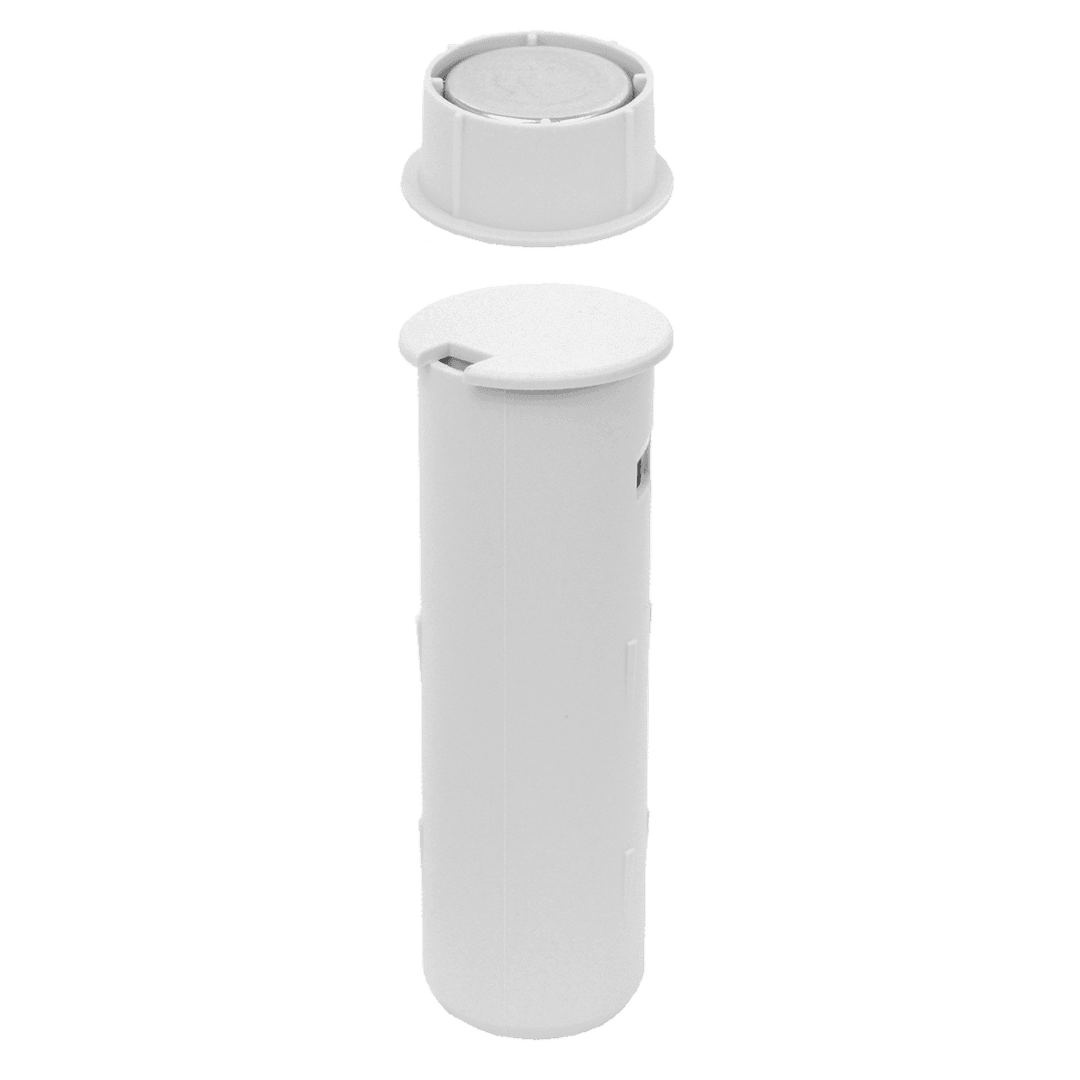

2GIG Recessed Door Contact
Make your contact invisible. The 2GIG-DW20R-345 hides inside the door or window frame for a clean look while providing supervised, reliable protection on 345 MHz. It uses a rare-earth magnet, long-life CR2032 coin cell, and offers strong open-air range up to ~450 ft—ideal for front doors, French doors, and casements. An encrypted eSeries version is also available.
Why Choose This with Smart Shield Systems
- Pro drilling & alignment: We bore the correct 11/16″ holes, set proper depths, and align magnet/sensor for dependable trips.
- Discreet finish: Hardware disappears once the door is closed—great for premium trim and painted finishes.
- Clean programming: We enroll and label the zone, verify supervision/tamper/low-battery reporting, and test RF range.
Key Features
- Hidden, recessed install with compact sensor body and rare-earth magnet.
- Long wireless reach: up to ~450 ft open air to a 2GIG wireless panel (plan for less indoors).
- External input capable: accepts N/C dry-contact devices if you want to monitor a second switch at the same opening.
- Fully supervised: reports alarm/restore, supervisory, and low-battery events.
- Encrypted option available for eSeries panels.
Product Specifications (At-a-Glance)
- Model: 2GIG-DW20R-345 (recessed door/window contact)
- Frequency / Modulation: 345.000 MHz, ASK-OOK; supervisory ~70 min.
- Open-air RF range: ~450 ft (nominal).
- Magnet gap / sensitivity: 0.625″ minimum, ~0.85″ typical trip.
- Power: 1× CR2032 3 V lithium coin cell; ~5-year typical life.
- Dimensions: Sensor ≈ 2.57″ × 0.75″; Magnet ≈ 0.5″(H) × 0.75″(D).
- Install details: drill 11/16″ bores; typical depths ≈ 2.6″ frame and ≈ 0.5″ door (follow the install guide).
- Operating environment: 32–104 °F (0–40 °C); 5–95% RH, non-condensing.
Compatibility Notes
- Works with 2GIG 345 MHz panels (and other systems that accept 2GIG-345 sensors). An encrypted eSeries recessed version is available for GC2e/GC3e/EDGE. We’ll verify your panel radio and recommend the right model.
Popular Use Cases
- Front/back doors where hardware should be completely hidden
- French/casement doors with clean trim lines
- Windows where surface contacts would be visible
Frequently Asked Questions
Use an 11/16″ bit. Typical depths are about 2.6″ into the frame for the sensor and ~0.5″ into the door for the magnet; we align them directly opposite for reliable operation.
Spec is ~450 ft open air; indoor range depends on construction. We test RF during commissioning and aim for conservative distances to the receiver.
A CR2032 coin cell with ~5-year typical life. Your panel/app will alert on low battery.
Yes—2GIG notes an encrypted eSeries version is available for compatible panels (we’ll specify it when your system supports eSeries).
Additional Resources
Download ManualReady for a Truly Hidden Contact?
Smart Shield Systems will drill, align, and enroll your 2GIG-DW20R-345, verify supervision and event reporting, and keep your trim pristine—security you don’t see, but always feel.
