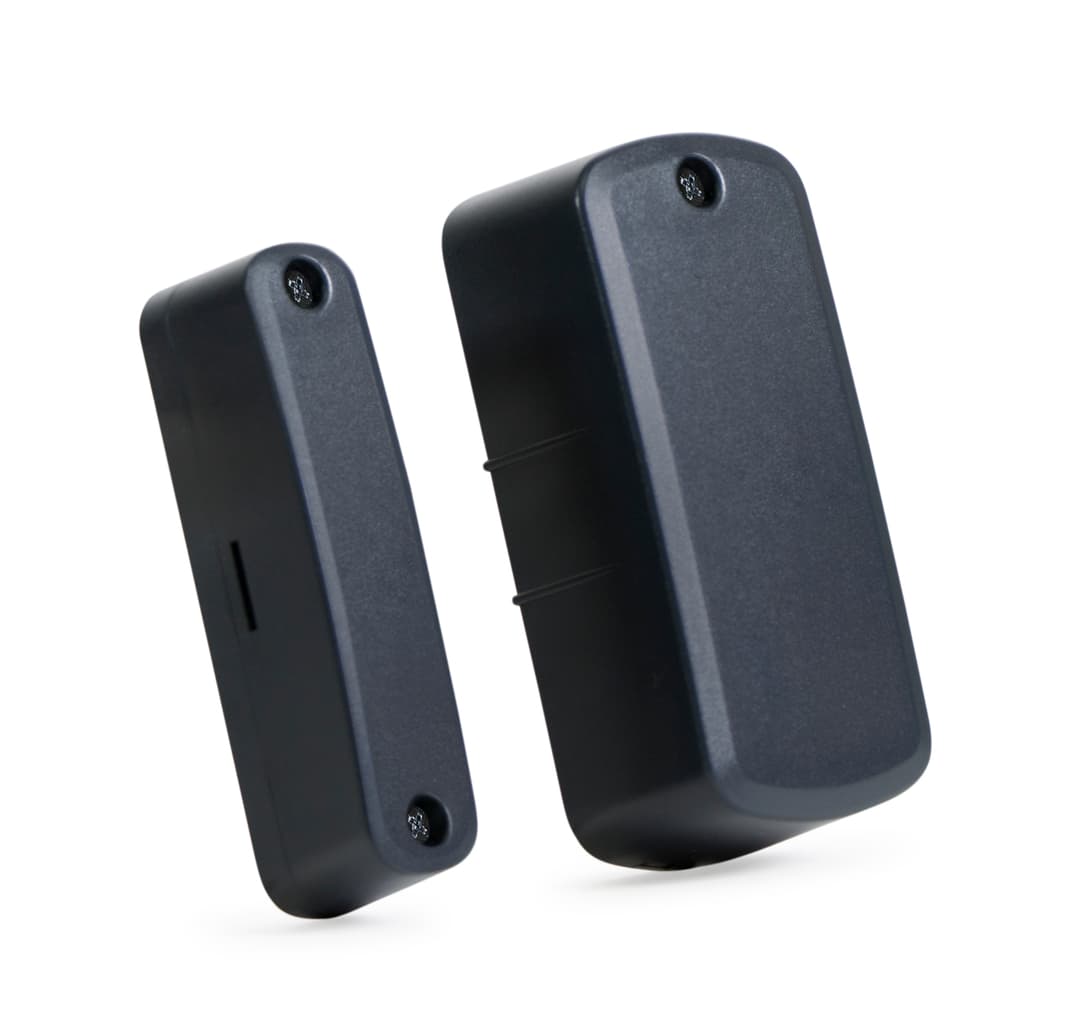

2GIG Outdoor Wireless Contact
Harden your perimeter—even outside. The DW30E-345 is an encrypted, outdoor-rated door/window contact built for gates, sheds, pool enclosures, and outbuildings. It supports a wide magnet gap, includes cover & wall tamper, and can also monitor a wired N/C device as a second zone—all while surviving heat, cold, rain, and sun.
Why Choose This with Smart Shield Systems
- Purpose-built for outdoors: We mount to flat or curved surfaces (posts/pipes) with screws or straps, seal the cable entry, and verify RF range back to your panel.
- Two zones from one sensor: We’ll use the internal reed for the gate/door and (optionally) wire a second N/C contact (e.g., latch or overhead switch) for separate alerts.
- Clean programming & testing: We enroll the proper loops (Loop 2 = reed, Loop 1 = external), confirm tamper reporting, and set up Alarm.com notifications.
- Looks that blend in: We can paint the housing to match your fence or frame (non-metallic paints only).
Key Features
- Encrypted eSeries 345 MHz wireless for authenticated signaling to compatible 2GIG panels.
- Outdoor durability: IP56 tested; –40° to 150°F, 0–100% RH operating range.
- Wide-gap contact: preferred ¼″ spacing; maximum spec 1.25″ (manual). Note: on wood surfaces ~2″ is achievable; expect less on metal.
- Dual-zone capable: internal reed + external N/C input (UL installs: ≤ 3 ft lead, Form C (SPDT) contact).
- Strong RF: up to ~350 ft open-air; supervised (~70-min check-ins) with low-battery and tamper reporting.
- Battery life: up to ~5 years (2× Lithium AA).
Product Specifications (At-a-Glance)
- Model: 2GIG-DW30E-345 (Outdoor, eSeries encrypted)
- Frequency: 345 MHz; Loops: Loop 2 = magnet/reed, Loop 1 = external contact.
- RF Range: 350 ft (106 m) open air; supervision ~70 min.
- Magnet Gap: up to 1.25″ (spec); manual notes ~2″ achievable on wood.
- Dimensions: Sensor 4.57 × 2.13 × 1.54″; Magnet 4.06 × 0.98 × 1.10″; rare-earth magnet.
- Power: 2× Lithium AA (included); up to ~5-yr life.
- Housing / Finish: ASA, paintable (non-metallic paints).
- Environmental / Rating: –40° to 150°F, 0–100% RH, IP56.
Compatibility Notes
- Made for 2GIG eSeries panels (GC2e / GC3e / EDGE). We’ll verify firmware and enrollment on site. (The non-encrypted DW30-345 served legacy panels.)
Popular Use Cases
- Driveway or side-yard gates (swing or slide)
- Pool enclosures needing notification on entry
- Sheds, barns, and roll-up doors with large gaps or shifting frames
Frequently Asked Questions
Yes. It’s IP56 tested and rated from –40° to 150°F with 0–100% humidity tolerance. We still mount where ice/snow buildup won’t block operation and seal the cable entry.
Spec is up to 1.25″; on wood surfaces, the manual notes ~2″ is possible. We align parts for the best signal and longevity; gaps shrink on metal.
Use Loop 2 for the built-in reed (gate/door). Loop 1 accepts a wired N/C contact (UL: Form C, ≤ 3 ft lead) for a second input—great for latches or specialty switches.
Yes—mount to curved surfaces with stainless or heavy-duty nylon straps; post diameter should be < 2″. We secure and test for vibration.
Expect up to ~5 years under typical use. Your panel/app will report low battery well before replacement.
Additional Resources
Download ManualReady for Outdoor Perimeter Protection?
Smart Shield Systems will specify, mount, enroll, and test your 2GIG-DW30E-345—and set up alerts and scenes—so gates, sheds, and pool doors are as closely watched as your front door.
