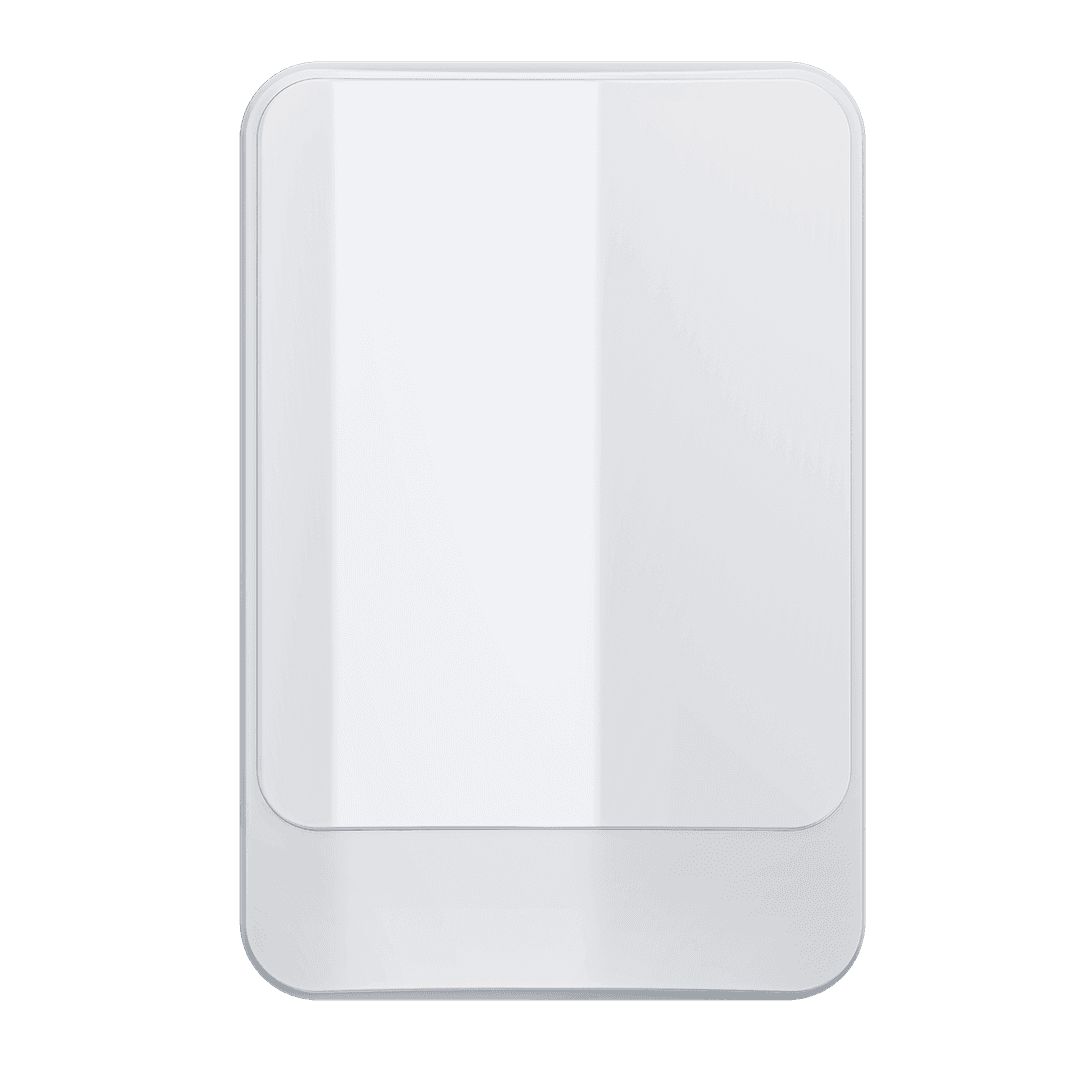

2GIG E+ Passive Infrared Motion Detector
An extended-range, two-way encrypted PIR built for large homes and light commercial sites. The PIR1E-900 covers 30 ft × 50 ft with pet immunity up to 85 lb, communicates on the 900 MHz E+ platform with up to ~1.2 miles open-air range, and runs on a single CR123A battery (about 3-year life).
Why Choose This with Smart Shield Systems
- Dialed-in placement & tuning: we mount at the recommended ~7.5 ft height, aim the sensor, and set sensitivity/pet-immunity to cut false trips.
- Extended-range RF design: we survey your property to leverage the E+ platform’s 900 MHz long range and verify strong supervision to the panel.
- Edge-ready commissioning: we confirm 2GIG EDGE firmware 1.3+, enroll the device, and test alarm/restore, tamper, and low-battery reporting.
Key Features
- E+ extended range: up to ~1.2 miles (open air) using 900 MHz spectrum.
- Wide coverage: 30 ft × 50 ft with ~100° horizontal sensing.
- Pet immunity: filters motion from pets up to 85 lb (installer-adjustable).
- Two-way encrypted communication for secure signaling and reliability.
- Simple power: 1× CR123A lithium; ~3-year projected life.
Product Specifications (At-a-Glance)
- Model: 2GIG-PIR1E-900 (E+ Extended Range PIR)
- Frequency: 904–922 MHz (E+ platform)
- Coverage / Optics: 30′ × 50′; ~100° horizontal; quad-element PIR
- Pet Immunity: up to 85 lb (38 kg)
- Suggested Mounting Height: 7.5 ft (2.3 m)
- Supervisory Interval: ~70 minutes
- Power: CR123A 3 V lithium (included); ~3-year life (typical)
- Dimensions / Weight: 3.53″ × 2.35″ × 1.63″; ~3.5 oz; ABS housing
- Operating Environment: 32–120 °F (0–49 °C); 5–90% RH, non-condensing (indoor use)
Compatibility Notes
- Panel: Designed for the 2GIG EDGE panel; firmware 1.3 or later required. (E+ sensors pair with EDGE only.)
Popular Use Cases
- Great rooms & living areas with wide fields of view
- Hallways / stair landings to watch traffic between zones
- Open-plan offices or showrooms where pet immunity is helpful
Frequently Asked Questions
Around 7.5 ft for best coverage and pet-immunity performance. We also avoid pointing at windows or HVAC sources.
The PIR1E-900 is rated up to 85 lb pet immunity. We set the jumper/setting and aim it to minimize animal-caused trips.
E+ sensors require the 2GIG EDGE running FW 1.3+. If you’re on another panel, we’ll discuss upgrade options.
It uses one CR123A lithium; the datasheet lists ~3-year projected life (usage and environment dependent).
E+ is rated up to ~1.2 miles open air; actual range depends on construction and layout. We perform an RF survey and testing during install.
Additional Resources
Download ManualReady for Extended-Range Motion Coverage?
Smart Shield Systems will place, enroll, and test your 2GIG E+ PIR (PIR1E-900), tune pet-immunity and sensitivity, and verify long-range supervision—so you get dependable detection without nuisance alarms.
