Smart Shield Systems

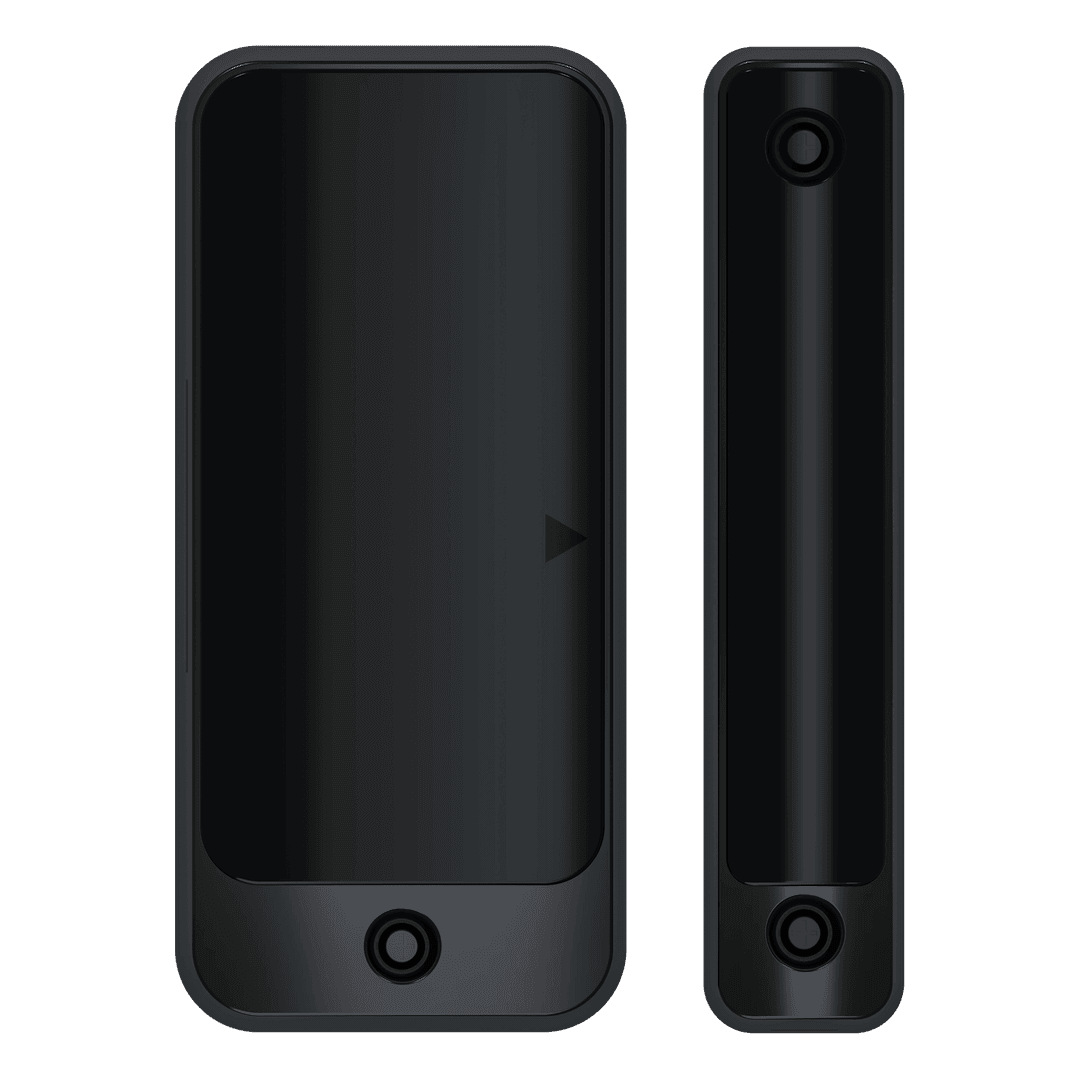

2GIG E+ Outdoor Wireless Contact
Harden your perimeter—even outdoors. The 2GIG-DW30E-900 is an E+ extended-range, two-way encrypted contact built for gates, sheds, pool enclosures, and outbuildings. With up to ~1.2 miles (open air) range on 900 MHz, a wide magnet gap (up to 1.3″), and an IP56 weather rating from –40° to 150 °F, it’s made for tough environments.
Why Choose This with Smart Shield Systems
- Outdoor-ready installs: we mount and align for the 1.3″ magnet gap and weather-seal as needed, then verify RF back to the panel.
- Works where others won’t: designed for gates, garages, and even poles/curved spots—we pick the hardware and placement that lasts.
- Clean programming: we enroll the sensor, confirm supervision (≈70-min), tamper, and low-battery reporting, and label it clearly in your app.
- Expandability: need a latch or specialty switch, too? We can wire an external NO/NC dry contact into the same transmitter.
Key Features
- E+ extended range: up to ~1.2 miles (open air) on 900 MHz (real-world range varies with materials).
- All-weather build: IP56, –40° to 150 °F, 0–100% RH (non-condensing).
- Wide magnet gap: up to 1.3″—ideal for yard gates and pool entries that flex or shift.
- Two-way encrypted communication for secure, reliable signaling.
- External input support: accepts Normally Open or Normally Closed dry contacts.
- Battery life up to ~5 years (field-replaceable).
Product Specifications (At-a-Glance)
- Model: 2GIG-DW30E-900 (E+ Outdoor Wireless Contact)
- Frequency: 904–922 MHz; two-way encrypted
- Panel compatibility: 2GIG EDGE, FW 1.3+ required
- Supervisory interval: ~70 minutes
- Magnet type / gap: Rare-earth, up to 1.3″ gap
- Dimensions (sensor / magnet): 4.6 × 2.1 × 1.5″ / 4.1 × 1.0 × 1.1″; paintable ABS housing; ~0.5 lb
- Power: 1 × CR123A (3 V) lithium; up to ~5 years life
- Environment / rating: –40° to 150 °F, 0–100% RH (non-cond.), IP56; FCC/IC/ETL listed
Compatibility Notes
- Purpose-built for the 2GIG EDGE platform (firmware 1.3+). We’ll confirm version and RF paths during installation.
- Need indoor contacts or glassbreaks on the same long-range platform? E+ series options are available to match.
Popular Use Cases
- Driveway or side-yard gates (swing or slide)
- Pool enclosures that require notification on entry
- Detached garages / sheds where long range and big gaps matter
Frequently Asked Questions
Yes—IP56 with an operating range of –40° to 150 °F and 0–100% RH (non-condensing). We still avoid spots where ice or standing water could obstruct movement.
The E+ spec lists up to ~1.2 miles (open air). Actual range depends on distance, terrain, and construction; we verify with an RF survey.
Yes—the wide magnet gap (up to 1.3″) helps tolerate movement. We align and test so minor shifts don’t cause false alarms.
The product is designed for gates, garages, and poles/curved areas. We choose mounting hardware that fits your post and finish.
A single CR123A lithium cell with up to ~5 years typical life; your system will alert on low battery.
Additional Resources
Download ManualReady for Outdoor Perimeter Protection?
Smart Shield Systems will specify, mount, enroll, and test your 2GIG-DW30E-900, set up alerts, and verify long-range supervision—so gates and outbuildings are as secure as your front door.
