Smart Shield Systems
1080p Outdoor Wi-Fi Camera with HDR and Two-Way Audio

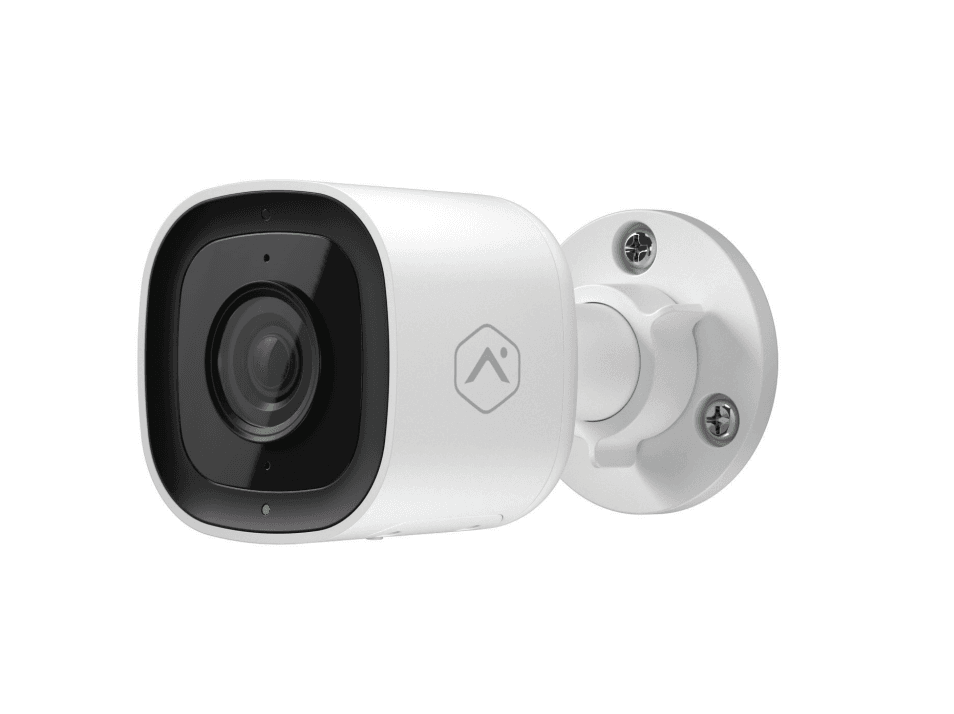

The Alarm.com ADC-V724 is a rugged IP66 outdoor camera that streams and records in 1080p HD with High Dynamic Range (HDR), adds Two-Way Audio for proactive deterrence, and supports Alarm.com Video Analytics for smarter alerts. It connects on dual-band Wi-Fi (2.4/5 GHz) and supports Onboard Recording with Smart View to a local microSD card (encrypted).
Why Choose This with Smart Shield Systems
- Pro placement & tuning: we site the camera for the 117°/65°/140° FOV and verify night IR coverage (up to ~49 ft / 15 m).
- Rock-solid onboarding: we add it via AP mode or WPS, enroll it to your Alarm.com account, and validate connectivity and clip uploads.
- Smarter notifications: we enable Video Analytics (people/vehicle/animal) and confirm Two-Way Audio works from your app.
Key Features
- 1080p HD + HDR image quality for tough lighting.
- Two-Way Audio with built-in mic & speaker; audio can be included in recorded clips.
- Alarm.com Video Analytics for relevant, fewer-false alerts.
- Onboard Recording with Smart View (local, encrypted microSD).
- IR night vision up to ~49 ft (15 m); 0.5 lux with IR.
- Dual-band Wi-Fi (802.11 b/g/n/ac); IP66 weather rating.
Product Specifications (At-a-Glance)
- Model: ADC-V724 (also sold as V724X revision)
- Sensor / Resolution: 1/3″, 2 MP, up to 1920×1080, H.264 codec, HDR.
- Field of View: 117° H / 65° V / 140° D.
- IR range: up to ~49 ft (15 m); low-light 0.5 lux with IR.
- Networking: Wi-Fi 2.4/5 GHz (AP or WPS setup).
- Ingress rating: IP66 (outdoor).
- Power: 12 VDC, 1 A plug-in adapter (included).
- Dimensions: 2.5″ × 2.5″ × 4.5″; Operating humidity 20–100% RH (non-cond.).
Compatibility Notes
- Requires an Alarm.com video plan on a compatible system/app; we’ll provision the camera on your account.
- Local microSD (sold separately) enables Onboard Recording with Smart View alongside cloud clips.
Popular Use Cases
- Driveway / front entry: greet visitors and deter package theft with Two-Way Audio.
- Back yard / patio: analytics tuned for people vs. animals to reduce nuisance alerts.
- Side yard / gate: take advantage of the wide 117° FOV for full coverage.
Frequently Asked Questions
We use Access Point (AP) mode or WPS per the install guide, then add the camera to your Alarm.com account and finalize placement.
Yes—IP66 rated for outdoor use. We still prefer shaded locations (e.g., under an eave) for best longevity and image quality.
Yes. With Onboard Recording with Smart View, the camera saves encrypted video to a microSD card and you can review it from the app/website.
Infrared illumination covers up to ~49 ft (15 m) in darkness.
Camera, 12 VDC power adapter, install guide, and mounting hardware; we supply/fit the microSD card if you want local recording.
Additional Resources
Download ManualReady to add outdoor HD video?
Smart Shield Systems will mount, enroll, and tune your ADC-V724, set up analytics and Two-Way Audio, and verify Wi-Fi and recording—so you get clear, reliable coverage where it matters.
