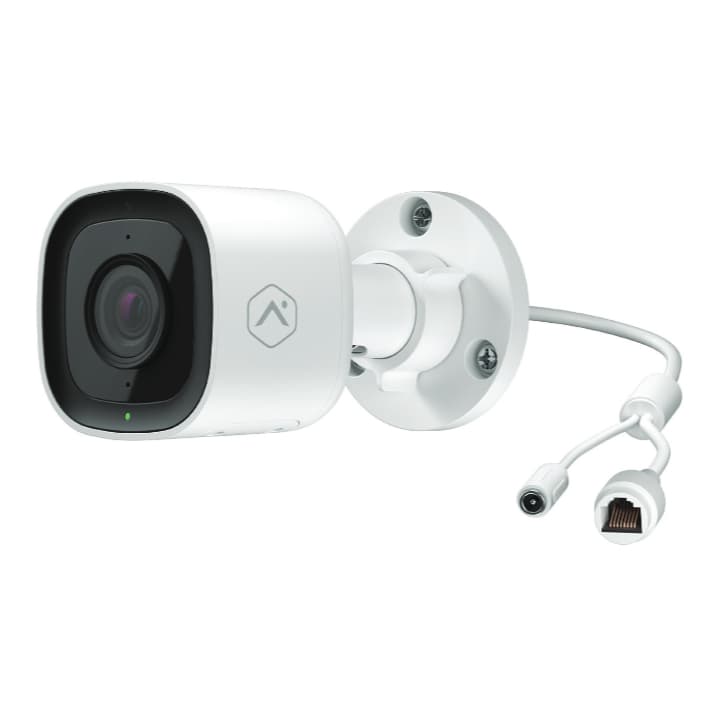

1080p Mini-Bullet Camera (ADC-VC727P)
The Alarm.com ADC-VC727P is a rugged PoE mini-bullet built for indoor/outdoor use with 1080p HDR video, Two-Way Audio and Perimeter Guard™ deterrence. As part of Alarm.com’s Pro Series, it supports Video Analytics and Business Activity Analytics (BAA), plus Onboard Recording with Smart View and CSVR support for 24/7 capture. IP66 weather rating and NDAA §889 compliance round it out.
Why Choose This with Smart Shield Systems
- Pro placement & aiming: we mount with the ball-joint bracket, frame key entry points, and tune HDR/IR for faces and plates.
- Rock-solid wiring: we power via PoE (802.3af) or, if PoE isn’t available, use the optional 12 VDC adapter—then weather-seal the RJ-45 with the included cap.
- Smarter alerts: we enable Video Analytics and Perimeter Guard™ (voice/tones + flashing red LED) and, for business, set up BAA (people counting, queues, heat maps).
- Flexible storage: we configure cloud clips, Onboard Recording (microSD), and/or Commercial Stream Video Recorder as your site needs.
Key Features
- 1080p HD with HDR for balanced highlights/shadows.
- Two-Way Audio + Perimeter Guard™ (audio messages/tones and flashing red LED for deterrence).
- Video Analytics and Business Activity Analytics (occupancy, people counting, queue monitoring, heat maps, crowd).
- Onboard Recording with Smart View (encrypted microSD timeline) and CSVR support.
- IR night vision up to ~49 ft (15 m); 0 lux with IR.
- IP66 weather-rated; NDAA §889 compliant.
Product Specifications (At-a-Glance)
- Model: ADC-VC727P (Pro Series 1080p Mini-Bullet)
- Sensor / Resolutions: 1/2.7″ progressive scan CMOS; 1920×1080, 1280×720, 640×360.
- Field of View: 117°.
- IR Night Vision: up to 49 ft (15 m); 0 lux with IR.
- Networking / Power: 10/100 RJ-45; PoE (802.3af) or 12 VDC ±10% adapter (sold separately).
- Operating Range: –22° to 122 °F (–30° to 50 °C); 20–100% RH (non-cond.).
- Ingress / Compliance: IP66; FCC, IC, CE, UL, NDAA §889.
- Dimensions / Weight: ≈ 3.0 × 3.0 × 5.3 in; ~12.5 oz.
- Included: mounting hardware, Torx wrench, drill template, weather-resistant RJ-45 cap.
Compatibility Notes
- Works within the Alarm.com video ecosystem for cloud clips, analytics, and live view; supports Onboard Recording (microSD) and Commercial Stream Video Recorder for continuous video.
- Enrollment / power-up: connect by Ethernet (PoE preferred); if no PoE, use the optional AC/12 VDC adapter, then add the device to the account per the install guide.
Popular Use Cases
- Front entry & driveways: proactive talk-down using Two-Way Audio and Perimeter Guard™ after hours.
- Loading zones & walkways: analytics-driven alerts when people/vehicles cross set lines.
- Retail / lobbies: BAA for occupancy, queue monitoring, and heat-map insights.
Frequently Asked Questions
Wired. The VC727P is an Ethernet/PoE camera. Use PoE (802.3af) or the optional 12 VDC power adapter if your switch isn’t PoE.
Yes—Two-Way Audio is built in, and Perimeter Guard™ uses audio + flashing red LED for deterrence.
Insert a supported microSD card to enable Onboard Recording with Smart View (encrypted 24/7 capture and searchable timeline), or add a CSVR for multi-camera continuous recording.
It offers 0 lux with IR and IR range up to ~49 ft (15 m); we confirm coverage during placement.
Yes—the datasheet notes compliance with Section 889 of the NDAA (see Alarm.com legal statement for current status).
Additional Resources
Download ManualReady for pro-grade outdoor coverage?
Smart Shield Systems will mount, wire, and enroll your ADC-VC727P, enable analytics and deterrence, and configure storage—so you get clear evidence and smarter alerts, day and night.
