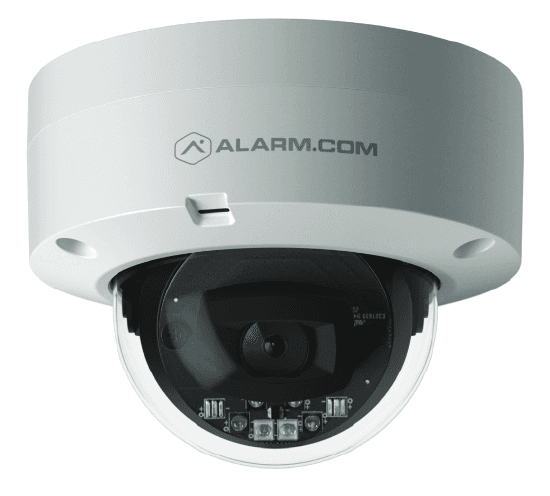

1080p Indoor/ Outdoor Dome Camera
The Alarm.com ADC-VC827P is a PoE mini-dome built for tough indoor or outdoor installs. As a Pro Series camera, it supports Video Analytics and optional Business Activity Analytics (BAA), delivers 1080p HDR video, IR night vision up to ~95 ft, and offers flexible storage with Onboard Recording with Smart View and CSVR support. Its IP66 weather and IK9 impact ratings make it a durable, low-profile choice for entries, halls, and storefronts.
Why Choose This with Smart Shield Systems
- Clean, pro cabling: we power via PoE (802.3af) or 12 VDC, weather-seal the connection, and enroll the camera to your Alarm.com account.
- Framed for evidence: we aim the 2.8 mm, 111° FOV lens for clear faces and approach lines, and verify IR coverage to ~95 ft at night.
- Smarter alerts: we enable Video Analytics (object detection) and, where useful, BAA features like people counting or heat maps.
- Right storage mix: we’ll set up cloud clips, Onboard Recording (microSD), and/or a Commercial SVR for 24/7 capture.
Key Features
- 1080p HDR video for balanced highlights/shadows.
- IR night vision to ~95 ft (30 m); 0 lux with IR.
- Video Analytics with object detection; Business Activity Analytics options (occupancy, people counting, queues, crowds, heat maps).
- Onboard Recording with Smart View (encrypted local microSD timeline) and CSVR support.
- IP66 weather and IK9 impact ratings; includes an optional dark-gray cover for discreet aesthetics.
Product Specifications (At-a-Glance)
- Model: ADC-VC827P (Pro Series 1080p dome)
- Resolutions: 1920×1080, 1280×720, 640×360 (H.264).
- Sensor / Lens / FOV: 1/2.7″ progressive-scan CMOS; 2.8 mm, F1.6; 111° FOV.
- IR / Low light: ~95 ft (30 m); 0 lux with IR.
- Networking / Power: 10/100 RJ-45; PoE (802.3af) or 12 VDC ±10%; ~9.5 W max.
- Operating range: –22° to 122 °F (–30° to 50 °C); 20–100% RH (non-cond.).
- Ingress / Impact: IP66, IK9.
- Dimensions / Weight: 4.1″ × 3.1″ (103.5 × 78 mm); ~376.5 g.
- Included accessories: Camera, dark-gray cover, mounting hardware, Torx wrench, water-resistant cap, cloth.
Compatibility Notes
- Works in the Alarm.com video ecosystem: cloud clips, analytics/BAA, Onboard Recording (microSD), and Commercial SVR (e.g., CSVR126) for continuous recording.
Popular Use Cases
- Front entrances / lobbies: low-profile dome with strong vandal resistance and analytics.
- Interior corridors / stairwells: wide 111° FOV to capture approaches and cross-traffic.
- Covered outdoor areas: IP66 housing with ~95 ft IR for night-time clarity.
Frequently Asked Questions
PoE/wired only. Connect by Ethernet and power via PoE (802.3af) or 12 VDC. There’s no Wi-Fi radio in this model.
Approximate, continuous recording at 1080p/15 fps is ~7 days on 128 GB (about 2 days on 32 GB; 4 days on 64 GB). Smart View makes it easy to search that local timeline.
Standard Video Analytics (object detection) plus optional BAA modes like occupancy, people counting, queue monitoring, crowd gathering, and heat mapping.
It’s rated IP66 for dust/rain and IK9 for impact resistance—suited to exposed or public areas.
Camera, dark-gray cosmetic cover, mounting hardware, Torx wrench, water-resistant RJ-45 cap, and cleaning cloth.
Additional Resources
Download ManualReady for a tough, pro-grade dome?
Smart Shield Systems will mount, aim, and enroll your ADC-VC827P, tune analytics, and set up cloud + local/CSVR recording—so critical areas stay covered day and night.
